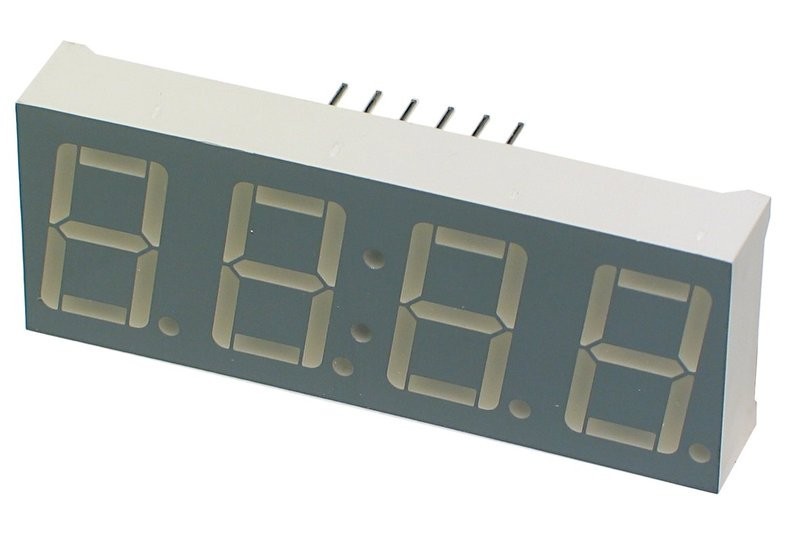

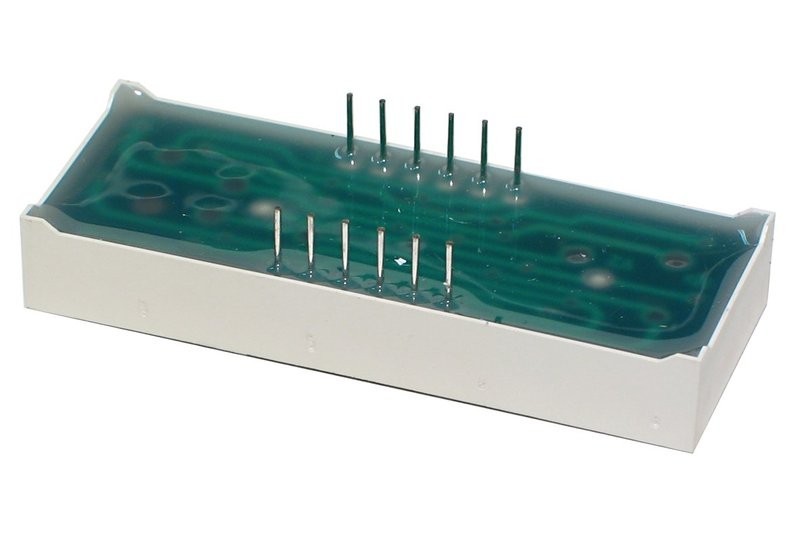

RED QUAD 7-SEGMENT LED DISPLAY 50x19 mm COMMON CATHODE View larger

RED QUAD 7-SEGMENT LED DISPLAY 50x19 mm COMMON CATHODE

CC56-12SRWA

2 Items

In stock

Manufacturer homepage

6,54 €

10+5,89 €

  • segment dimensions 14 x 8 mm (0,56")
  • threshold voltage 2,2V@20mA
  • red 4,7...24mcd
  • each segment has its own pull-down common cathode control
  • combined control for the midpoints
  • points between segments are not used
  • retractable pins combined for all four segments

Note! In this model, point control is only for the points separating the digits, i.e. 8.8.8.8.

Measures50,3 x 19 x 8 mm

datasheet CC56-12SRWA

Download (76.77k)
