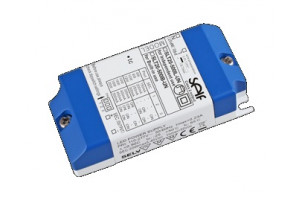

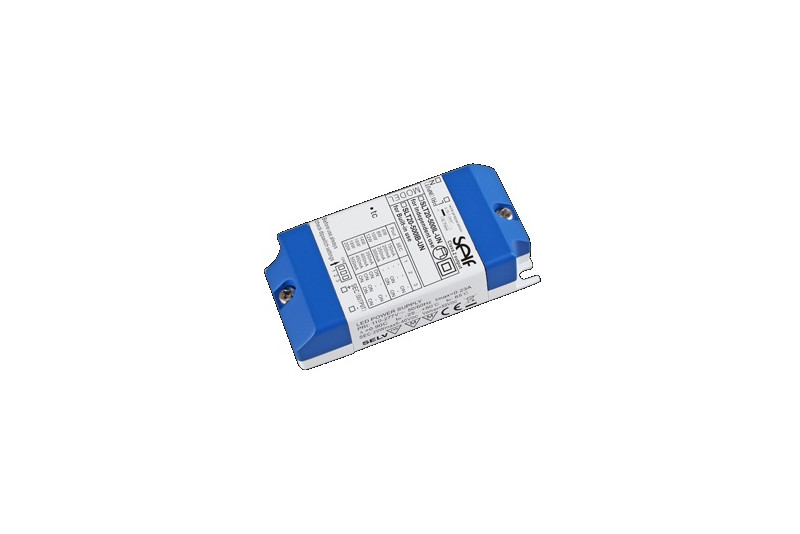

LED POWER SUPPLY 20 W, 2 - 42 V DC, 150 - 500mA

This compact constant current power supply is designed for a wide 110–277 VAC input voltage range and offers high efficiency with very low power loss.

The output current can be easily set via a DIP switch from 150 mA to 500 mA in 50 mA steps, allowing flexible use with different loads. The power supply complies with the SELV standard and includes built-in protection against open circuit, short circuit, overload, and over-temperature conditions. After fault removal, the unit automatically restarts.

Features

• Adjustable constant current driver via DIP switch (150–500 mA)
• High efficiency with low power loss
• Ripple-free output
• Class II protection against electric shock
• Start-up time ≤ 0.5 s
• Protection against short circuit, overload, over-temperature, and open circuit
• Automatic restart after fault removal
• 5-year warranty
