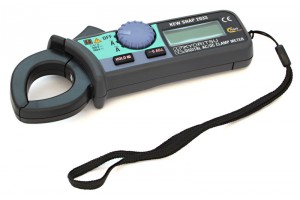

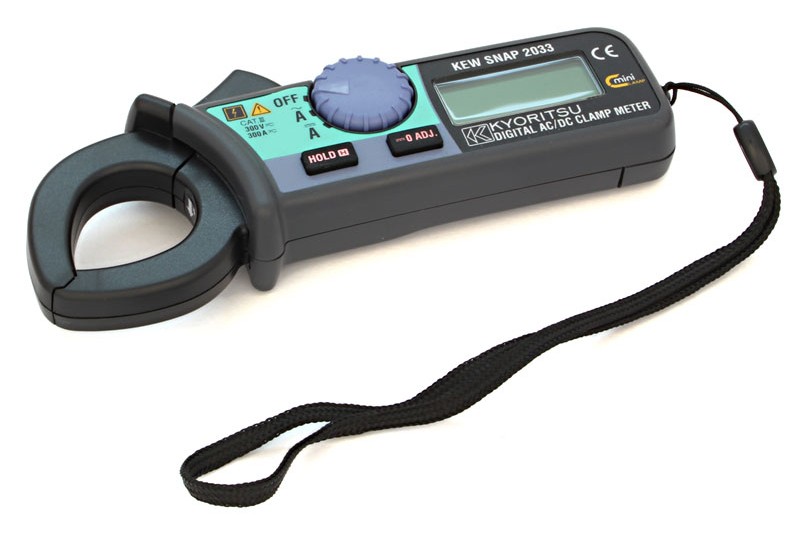

Kyoritsu 2033 AC/DC CLAMP METER 300A

KEW-2033

4 Items

In stock

263,80 €

Kyoritsu MODEL 2033 - AC/DC Digital Clamp Meter for 300A with 24mm conductor size.

  • Smallest clamp meter capable of AC and DC current measurements.
  • 300A auto ranging has minimum resolution of 0.01A AC/DC.
  • Auto-zero function to allow one touch zero adjustment.

Specifications

AC A40/300A ±1%rdg±4dgt [50/60Hz] (0 - 40A)
±2.5%rdg±4dgt [20Hz - 1kHz] (0 - 40A)
±1.5%rdg±4dgt [50/60Hz] (20 - 200A)
±2.5%rdg±4dgt [20Hz - 1kHz] (20 - 200A)
±3.5%rdg [50/60Hz] (200 - 300A)
±4%rdg [20Hz - 1kHz] (200 - 300A)
DC A40/300A
±1%rdg±4dgt (0 - ±40A)
±1.5%rdg±4dgt (±20 - ±200A)
±3%rdg (±200 - ±300A)
Conductor sizeØ24mm max.
Frequency responseDC, 20Hz - 1kHz
Safety StandardIEC 61010-1 CAT III 300V
IEC 61010-2-032
Power sourceLR-44 (1.5V) × 2
Dimensions147(L) × 59(W) × 25(D)mm
Weight100g approx.

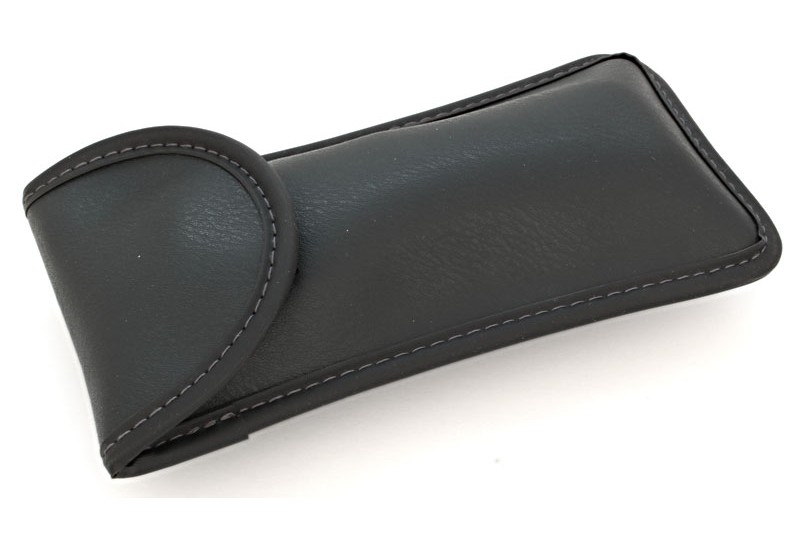

Included Accessories9090 (Carrying Case)
LR-44 × 2
Instruction Manual
EAN4560187060175
click for more info
ManufacturerKyoritsu (Kewtech)
Manufacturer's modelMODEL 2033
Measures147 x 59 x 25 mm
Weight100g

Datasheet KEW-2033

Download (332.97k)
