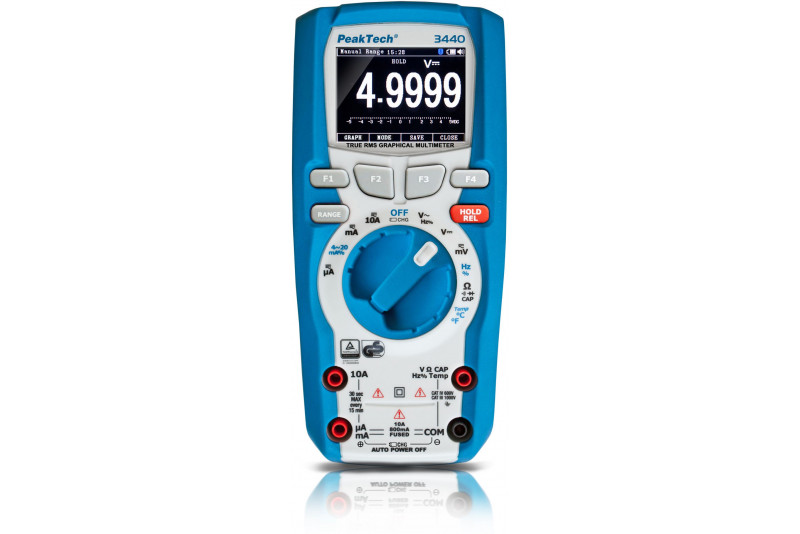

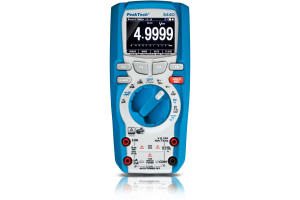

PeakTech 3440 GRAPHIC DMM TRMS 50000C +BT

PeakTech 3440 is an auto-ranging digital multimeter with 4 4/5 digits (49999) and a 13mm TFT-LCD display. Its modern design and wide variety of measurement functions align with the latest technical advancements. The backlit display provides clear views of GUI menus and measured points from the data logger and multimeter functions.

Additionally, this multimeter allows measurement display and storage on smartphones via Bluetooth and an app (IOS/Android). The PeakTech Multimeter app enables direct data forwarding via email or saving data as a table.

With its extensive measurement capabilities and intuitive operation, this device is ideal for electricians, technicians, and engineers seeking a precise, rugged, and highly efficient multimeter.

Features

• True RMS voltage measurements up to 1000 V AC / DC
• True RMS current measurements up to 10 A AC / DC
• Color TFT display with 50,000 digital digits
• Bluetooth interface for app and PC software
• Internal data logger with curve display
• Low Z, AC + DC and 4 ~ 20 mA% measurement functions
• Maximum value, minimum value function and average function
• Safety: TÜV / GS, EN 61010-1, CAT III 1000 V / CAT IV 600V
• Accessories: charger, temperature sensor, carrying case, test leads, BT adapter, software and manual

Technical specifications

• Display range: 50,000 counts
• Basic accuracy: 0.01%
• DC voltage measurement: 0 - 1000 V, ±0.05% 5 digits
• AC voltage measurement: 0 - 1000 V, ±0.5% 5 digits
• DC current measurement: 0 - 10 A, ±0.2% 5 digits
• AC current measurement: 0 - 10 A, ±0.8% 5 digits
• Resistance: 0 - 50 MOhm, ±0.2% 5 digits
• Capacitance measurement: 0 - 10 mF, ±1.0% + 5 digits
• Frequency measurement: 0 - 10 MHz, ±0.01% + 5 digits
• Temperature measurement: 100.0 to +1350°C, ±1.0% + 3°C
• Operating voltage: 7.4 V lithium-ion battery
• Dimensions (W x H x D): 80 x 175 x 50 mm
• Weight: 400 g

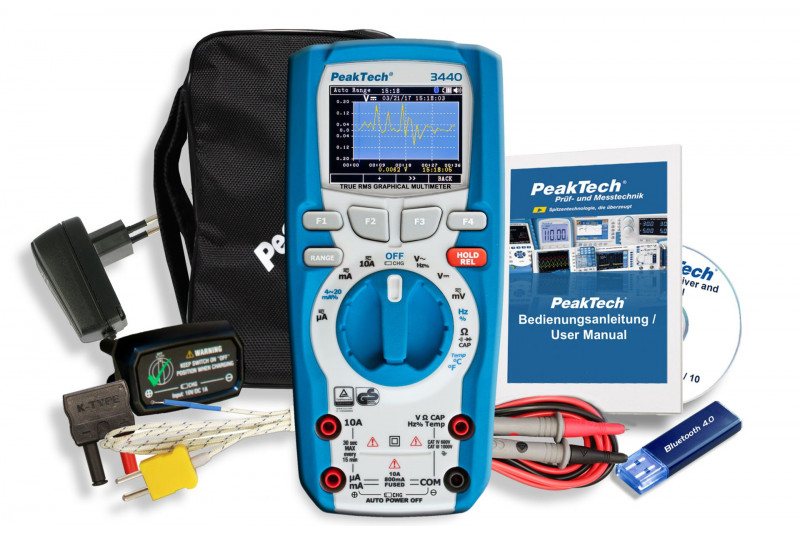

Delivery includes: case, test leads, K-type temperature probe, 7.4 V Li-Ion battery, charger and instructions (English).

Note! Spare battery available if required.
