New Sale! Rigol DM858E View larger
Previous Next

Rigol DM858E

RGDM858E

Out of stock

Manufacturer homepage

374,39 €

-12%

425,45 €

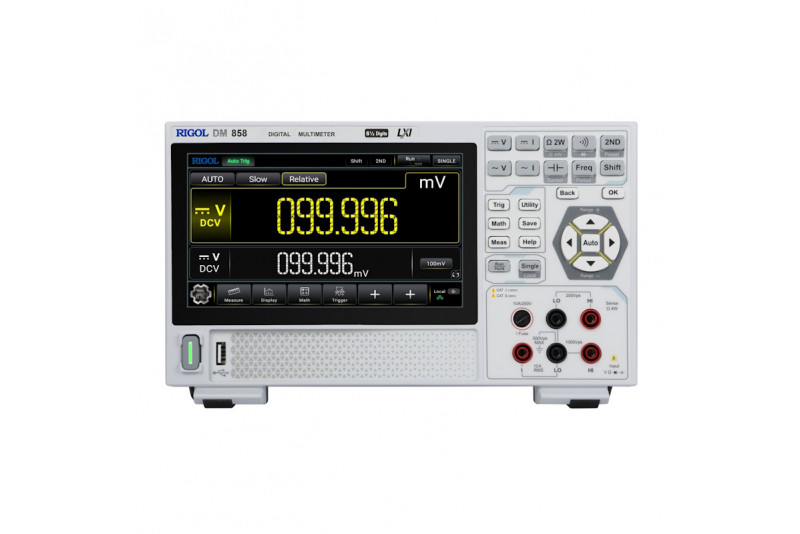

Rigol DM858E – Compact 5½-digit multimeter with a reading rate of 80 readings/s, 20 000-point memory, and 0.06% DCV accuracy. The DM858E supports extensive measurement, math, and graphical functions, a 7” touchscreen, as well as USB, LAN, and Web Control connectivity.

Features

  • 5½-digit resolution (120,000 counts)
  • Maximum reading rate: 80 readings/s (DM858)
  • 7-inch color touchscreen (1024 × 600) with dual-display function
  • Measurements: DCV, DCI, ACV, ACI, resistance (2-/4-wire), capacitance, frequency, diode, continuity, temperature (TC: B, E, J, K, N, R, S, T; RTD: 385, 389, 391, 392)
  • True-RMS measurement for AC voltage and current
  • Memory: 20 000 measurement points
  • 10 groups of history and setup storage, supports external USB storage
  • Math and graphical functions: dBm, dB, relative, statistics, limits, histogram, bar and trend charts

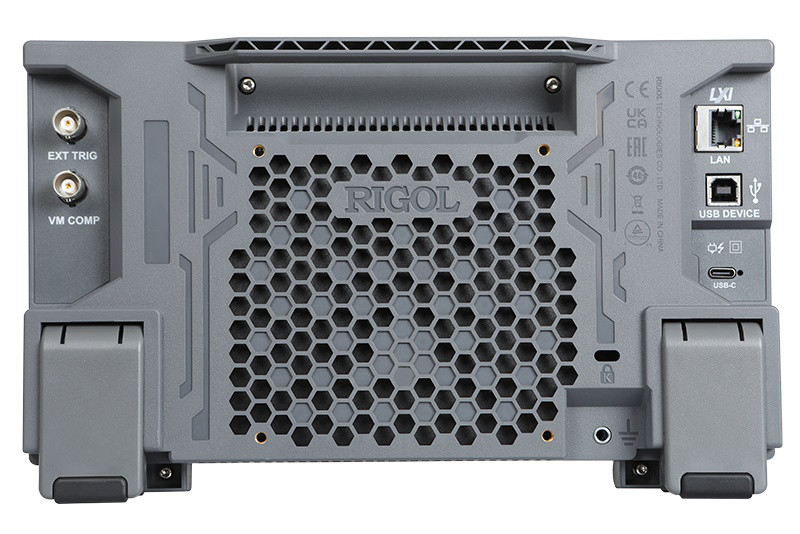

  • Interfaces: USB Host (front), USB Device and LAN (rear), Web Control, SCPI support
  • Power input: Type-C (12 V, 3 A), max. consumption 10 W

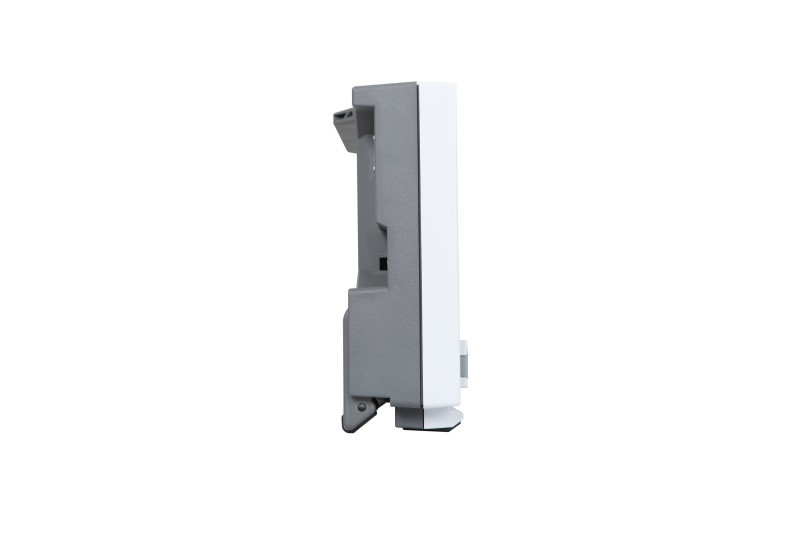

  • Compact size: 266 × 165 × 80 mm, weight < 2 kg, VESA 100×100 mount support

Comparison Table

ModelResolutionDCV Accuracy (1 yr)Reading RateMemoryMax CurrentMax CapacitanceInterfaces
DM8585½ digits±0.03%125 readings/s500,000 points10 A10 mFUSB, LAN
DM858E5½ digits±0.06%80 readings/s20,000 points3 A1 mFUSB, LAN

Package Includes

  • DM858E digital multimeter
  • Power adapter (Type-C)
  • Two test leads (red and black)
  • Two alligator clips (red and black)
  • Two spare fuses (F3 A / 250 V)
  • USB cable (150 cm)

Links

click for more info
ManufacturerRigol
Manufacturer's modelDM858E
