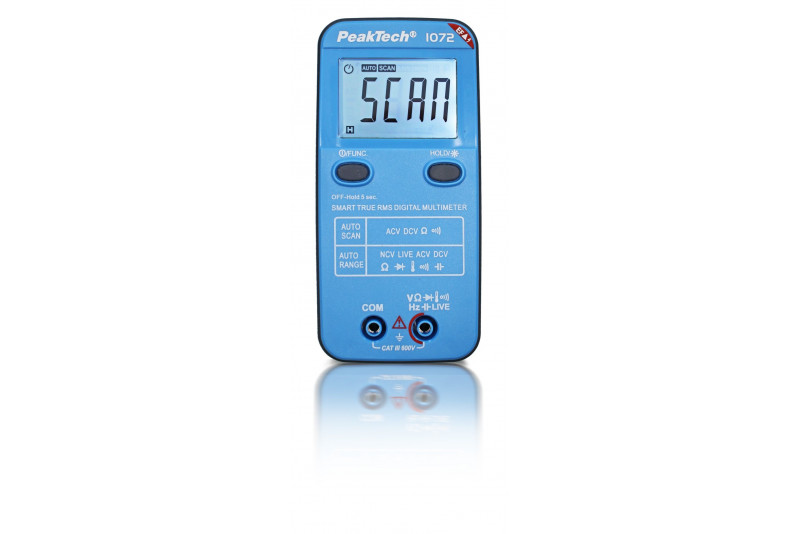

New PeakTech 1072 ÄLYKÄS YLEISMITTARI 600V AC/DC View larger

PeakTech 1072 SMART DMM 600V AC/DC

PEAK 1072

Out of stock

Manufacturer homepage

24,90 €

PeakTech 1072 – digital multimeter with automatic measurement function detection, True RMS measurement, and non-contact voltage detection (NCV). Measures voltage, frequency, capacitance, and temperature. The bright backlit display changes color in overvoltage conditions. CAT III 600 V.

The PeakTech 1072 automatic digital multimeter combines cutting-edge technology with an impressive range of functions in a compact design. It measures voltages up to 600 V AC/DC, is CAT III certified, and features True RMS for accurate measurements of fluctuating voltages.

The integrated NCV voltage tester enables non-contact voltage detection, and the LIVE test reliably identifies phase and neutral conductors. Thanks to automatic function detection, there’s no need for a rotary switch – the meter automatically recognizes the measurement type and adjusts its settings accordingly.

The 4000-count LCD display with blue backlight turns red when the measurement range is exceeded or when the NCV tester detects voltage. In addition to standard measurements (voltage, resistance, continuity, diode test, and temperature), it also supports capacitance and frequency measurement.

An excellent choice for students, electricians, and hobbyists – top features at a competitive price.

Features

Auto-Scan✔
Basic DC Accuracy+/- 0.5%
Battery1.5V AAA
Max. Capacitance1 mF
Digital Counts4,000
Display TypeLCD
LED Light✔
NCV (Voltage Detection)✔
Overvoltage CategoryCAT III 600 V
Range SelectionAuto
True RMS✔
Max. DC Voltage600 V
Max. Frequency4 kHz
Max. Resistance40 MΩ
Max. Temperature (thermocouple)1200 °C
Min. Temperature (thermocouple)-200 °C
Max. AC Voltage600 V

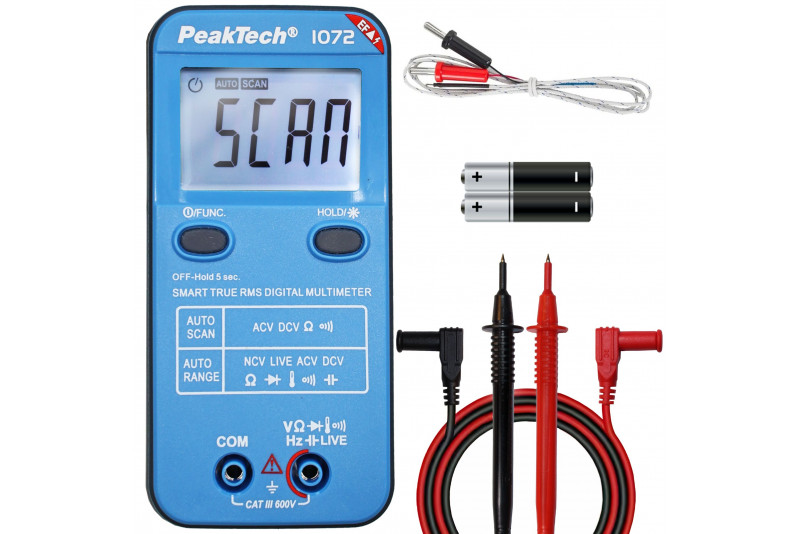

Package Includes

  • Multimeter
  • Test leads
  • Thermocouple
  • Batteries
  • Operating instructions

Links

click for more info
ManufacturerPeakTech
Manufacturer's model1072
User manualsEnglish, Finnish by request (pdf)
ClassificationCAT III 600V
