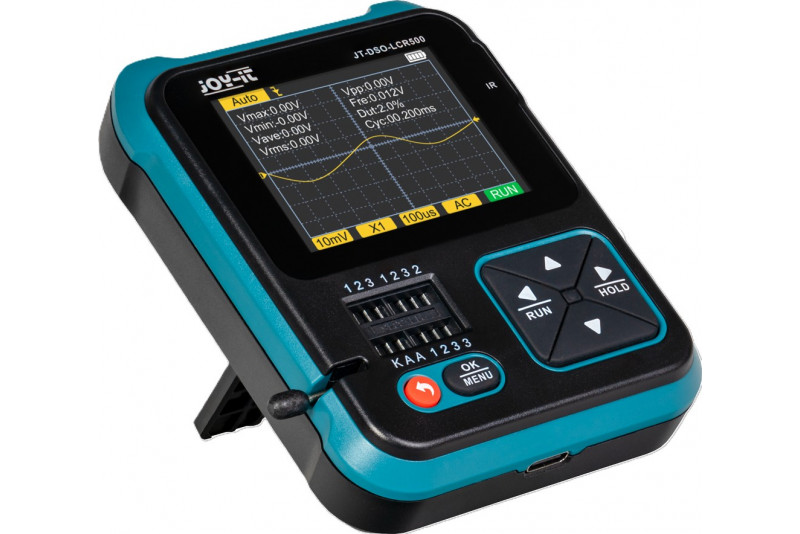

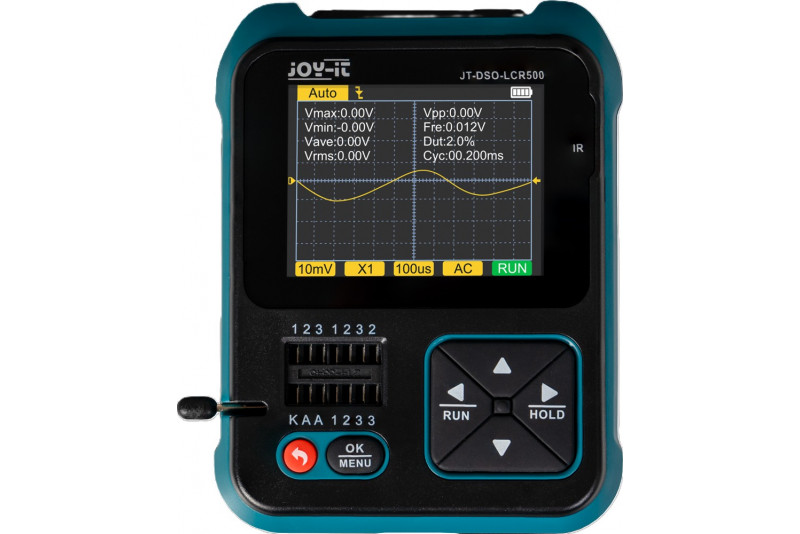

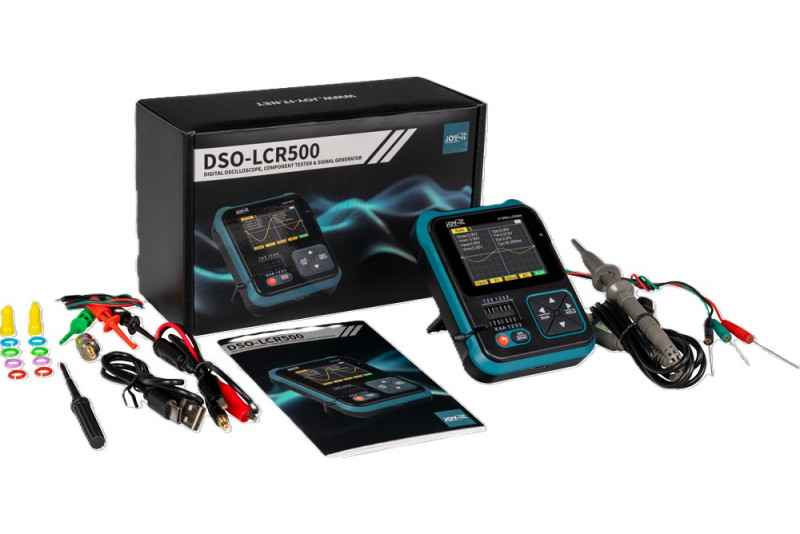

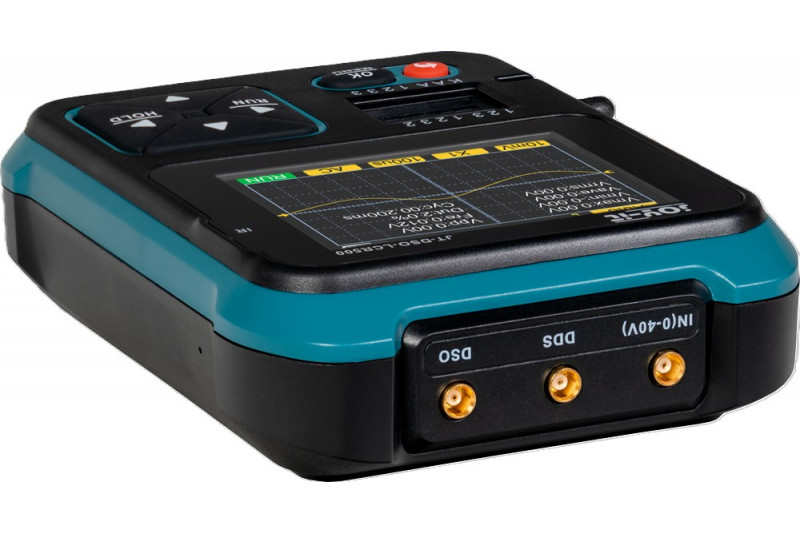

With a digital oscilloscope, determined hobbyists can evaluate time-dependent signals without expensive measuring equipment.
The multifunctional component tester also enables fast and automatic component identification. In addition, our DSO-LCR500 device has other useful functions, such as a signal generator, infrared signal decoder, and measurement of Zener diodes, DS18B20 sensors, and DHT11 sensors.
The device is equipped with a 1500 mAh rechargeable battery that can be conveniently charged via a USB-C connection. An integrated, foldable stand also makes it easy to use.
Digital oscilloscope
- Sampling frequency: 10 MS/s, 0–500 kHz bandwidth
- Input resistance: 1 MΩ, AC/DC coupling
- Vertical sensitivity: 10 mV/div – 10 V/div; time base: 10 µs – 10 s/div
- Trigger: automatic, normal, single; rising/falling edge
Component tester and LCR meter
- Automatically identifies resistors, capacitors, inductors, diodes, transistors, SCRs, triacs
- R: 0.01 Ω–50 MΩ
- C: 25 pF–100 mF; L: 10 µH–1000 µH
- Transistor analysis: hFE, UBE, ID/VGS, RDS(on), gate capacitance, leakage, etc.
Built-in signal generator
- Generates sine waves, square waves, pulse waves, triangular waves, and sawtooth waves
- Frequency: 1–100 kHz; amplitude ~0–3.3 V
Additional functions
- Continuity tester

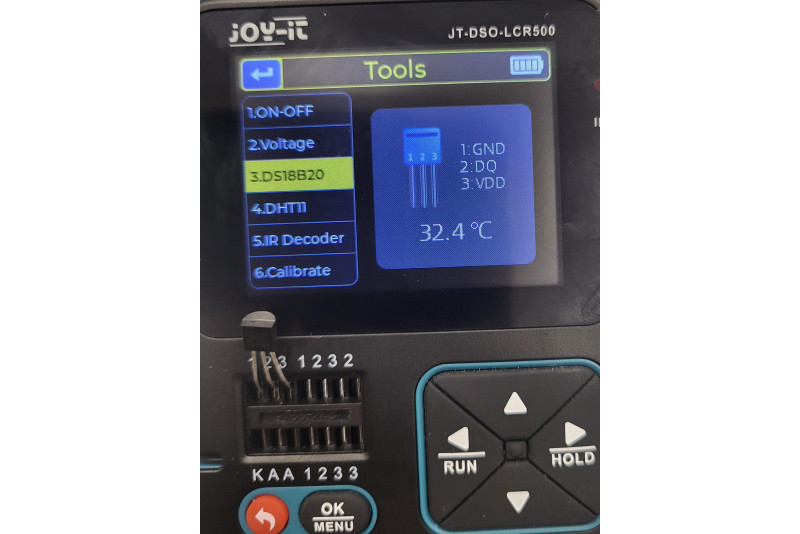

- Measures Zener diodes, DS18B20 and DHT11 sensors
- IR NEC protocol decoder
