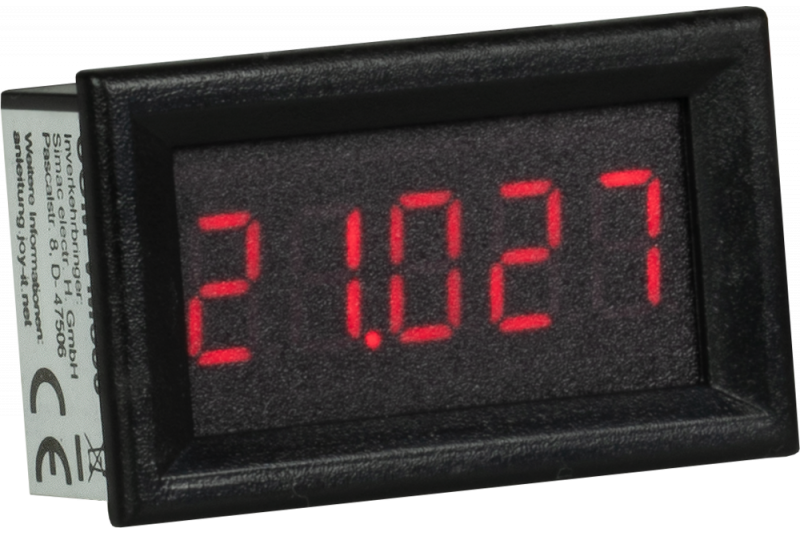

Joy-IT LED VOLTAGE METER 0.36" 5DG

This digital voltmeter VM533 is able to measure voltages up to 33 V precisely and displays it on an integrated 0.36"- 5 digit segment display. The running of the voltmeter is made possible directly within the measuring voltage. This makes the device to an absolute allrounder.

Specifications

• Operating voltage: 3,5 - 30V (DC) | Operation via measuring voltage possible
• Power consumption: ca. 8mA
• Measuring range: 0 - 33V DC
• Measuring accuracy: ±0,3%
• Operating temperature: -10 - 65°C
• Refresh rate: 200 ms
• Display mode: 5 digits Segment display
• Display size: 0,36“
• Display color: Red
• Cable assignment: Red: supply voltage (+); black: ground (-); yellow: measuring voltage
• Cable length: 14cm
• Dimensions: 48 x 29 x 22 mm
• Weight: 16 g
• Items Shipped: VM533
• EAN: 4250236817880

Links

• COM-VM533 Wiring English - 1,93 MB
• COM-VM533 Manual English - 328,23 KB
• COM-VM533 Datasheet English - 133,81 KB
