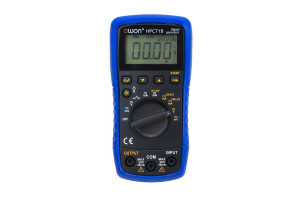

Owon HCP71A Process Signal Generator

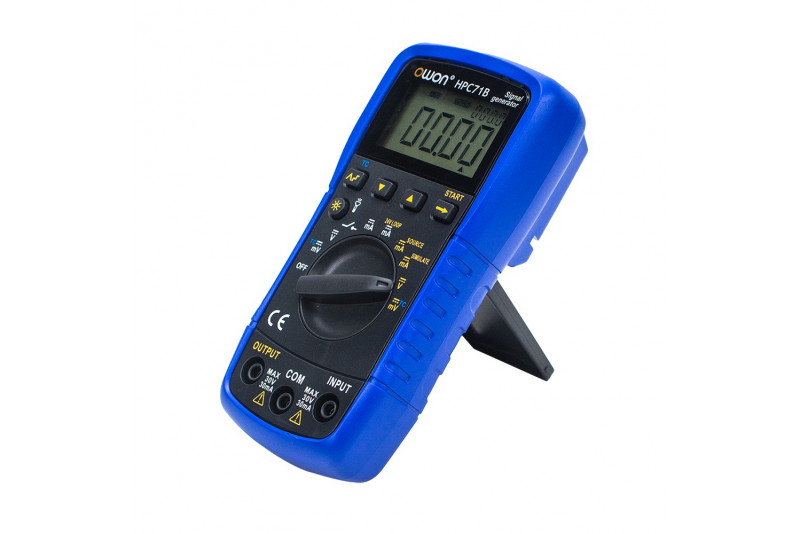

Owon HPC71A is a handheld process signal generator for measurement and simulation of common industrial process signals. The device supports DC voltage, DC current and DC millivolt signals with a basic accuracy of 0.2% of reading plus 4 digits. It can operate as both source and sink and provides 24 V loop power for transmitter testing.

The unit includes manual step output and automatic waveform output functions. It is powered by three AAA batteries and supports an external power supply from 5 to 28 V. The enclosure is designed for handheld use.

Technical specifications

• Model: HPC71A
• Basic accuracy: 0.2% + 4 digits
• External power supply: 5 to 28 V
• Loop power: 24 V, 10%, 25 mA
• Manual step output: supported
• Automatic waveform output: supported
• Source, DC millivolt: -10 to 110 mV, resolution 100 µV, accuracy 0.2% + 4 digits
• Source, DC voltage: -5 to 30 V, resolution 10 mV, accuracy 0.2% + 4 digits
• Source, DC current: 0 to 22 mA, resolution 0.01 mA, accuracy 0.2% + 4 digits
• Sink, DC current: 0 to 22 mA, resolution 0.01 mA, accuracy 0.2% + 4 digits

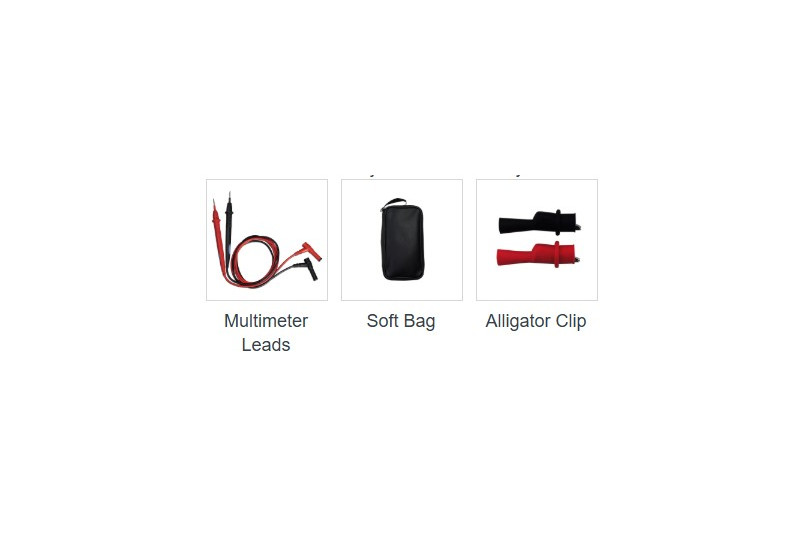

Package includes

• 1x HPC71A signal generator
• 2x probes (red and black)
• 1x storage bag
• 1x manual
