Joy-IT STEP-DOWN DC/DC-CONVERTER 6-40/0-32V 5A

SBC-BUCK03

12 Items

In stock

Manufacturer homepage

22,50 €

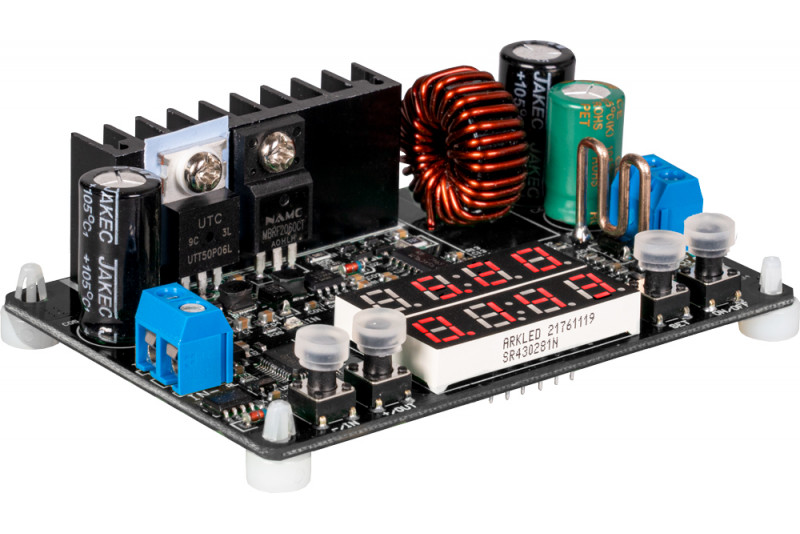

Joy-IT SBC-BUCK03 - DC/DC step down voltage converter with variable 0-32V output voltage

This voltage converter module can convert input voltages from 6 - 40 V down to an output voltage of 0 - 32 V.

The segment can show input and output voltage as well as output current.

The module can be used in constant voltage or constant current mode.

Main features

  • Model: Step-down converter with adjustable output
  • Special feature: Current and voltage display on the module, Constant voltage and constant current operation
  • Dimensions: 85 x 58 x 26 mm
  • Weight: 67 g
  • Items delivered: Voltage converter module

Further specifications

  • Input voltage: 6 - 40 V
  • Output voltage: 0 - 32 V
  • Output current: Max. 5 A
  • Output power: Max. 160 W
  • Connector: 2 x 2 pin screw terminal
  • Output voltage resolution: 0,01 V
  • Output current resolution: 0,001 A
  • Output voltage accuracy: ± (0,5% +3 digits)
  • Output current accuracy: ± (1% +5 digits)
  • Residual ripple (at 40 V to 32 V / 5 A): 100 mVpp
  • Input to output voltage ratio: x1,1

Note! Not for professional use.

EAN4250236824031
click for more info
ManufacturerJoy-IT
Manufacturer's modelSBC-Buck03
