Joy-IT USB-PD TRIGGER MODUL WITH USB-C / SCREW TERMINAL

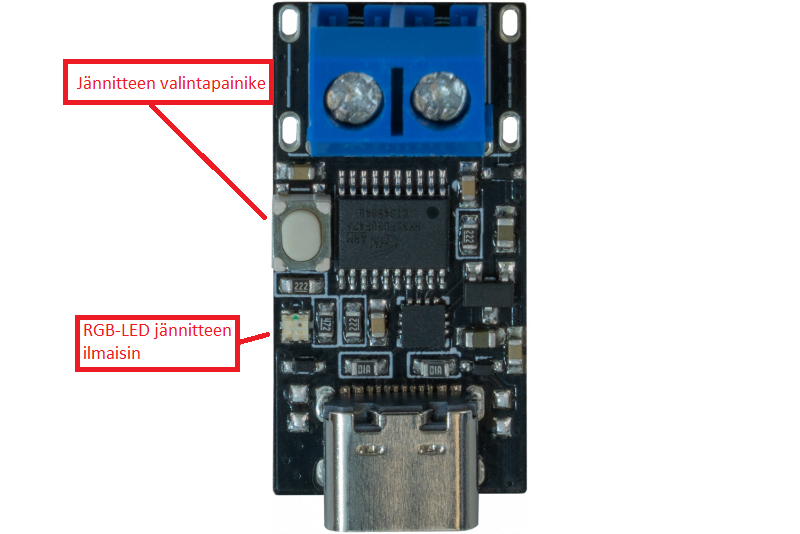

With this small module, you can trigger USB-PD protocols and thus, for example, charge your laptop via a PD-capable USB-C power supply. The output voltage can be adjusted in 5 steps (5 V, 9 V, 12 V, 15 V and 20 V) via the button integrated on the module. The currently selected voltage can be read from the colour of the RGB LED integrated on the module. The module can be used flexibly and is highly integrable.

Specifications

• OUTPUT VOLTAGE: 5 V / 9 V / 12 V / 15 V / 20 V (adjustable via button)
• SELECTED OUTPUT VOLTAGE: recognisable by the colour of the RGB LED
• SUPPLY VOLTAGE: (up to 20 V / 100 W) USB-PD-capable power supply (not included)
• OUTPUT CURRENT: Max. 5 A
• OUTPUT POWER: Max. 100 W
• INPUT INTERFACE: USB-C
• OUTPUT INTERFACE: Screw terminal
• SPECIAL FEATURES: Adjustable output voltage
• DIMENSIONS: 31.5 x 15 x 14 mm

Links

• COM-ZYPDN-ST Datasheet (English)
• COM-ZY12PDN Manual (English)
