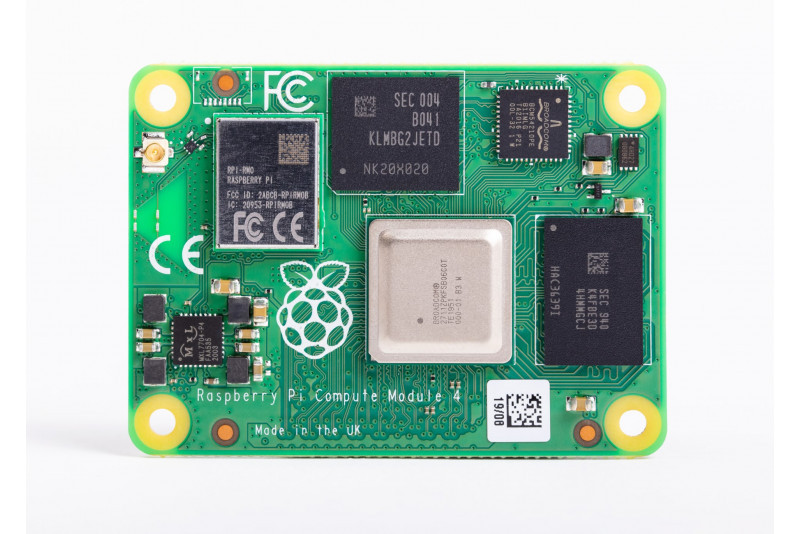

RASPBERRY CM4, 4GB Ram, 8GB eMMC, WiFi

Description

Compute Module 4 (CM4) brings the power of Raspberry Pi 4 to the popular Compute Module family.

Specs

• Form factor: 55 mm × 40 mm
• Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• Memory: 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
• Connectivity:
  • Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
  • Onboard Gigabit Ethernet PHY supporting IEEE1588
  • 1 × USB 2.0 interface
  • PCIe Gen 2 x1 interface
  • 28 GPIO signals
  • SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
• Video:
  • Dual HDMI interface (up to 4Kp60 supported)
  • 2-lane MIPI DSI display interface
  • 2-lane MIPI CSI camera interface
  • 4-lane MIPI DSI display interface
  • 4-lane MIPI CSI camera interface
• Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
• Input power: 5V DC
• Operating temperature: 0 to +80°C

Packing list

• 1pcs CM4104008 = Compute module 4 with wireless, 4GB ram, 8GB eMMC
