RASPBERRY PI 1U RACKMOUNT KIT

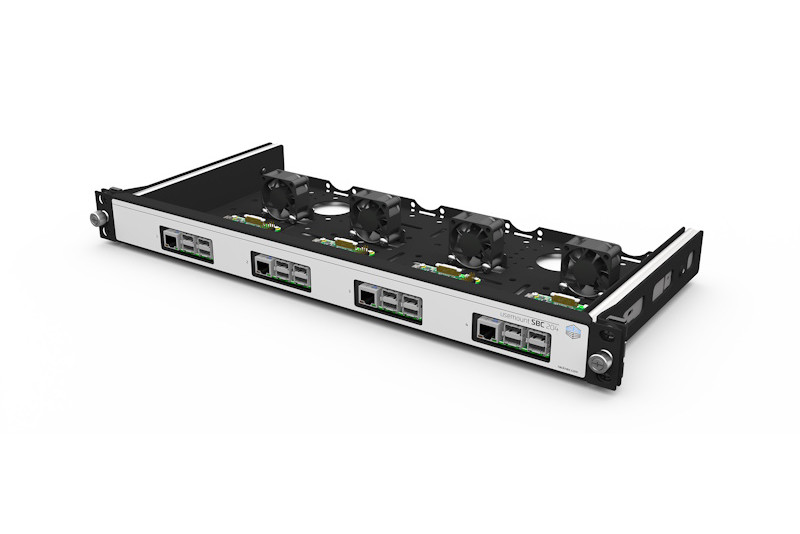

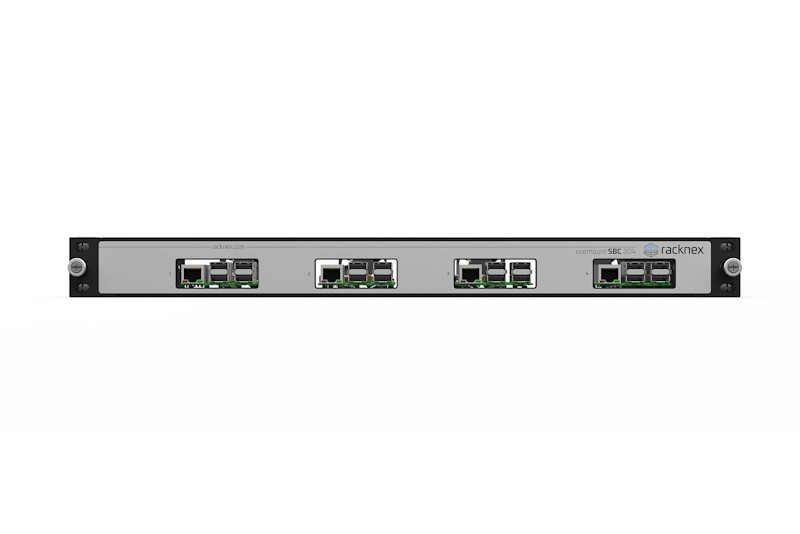

UM-SBC-204 Rackmount Kit is a durable and professional solution for mounting up to four Raspberry Pi or similar single-board computers (SBC) in a 19″ server rack. It offers a clean, efficient, and easily customizable setup for server or development environments.

Features

• Compatibility: Raspberry Pi 2B, 3B, 3B+, 4B, 5 and other SBCs with Raspberry Pi form factor

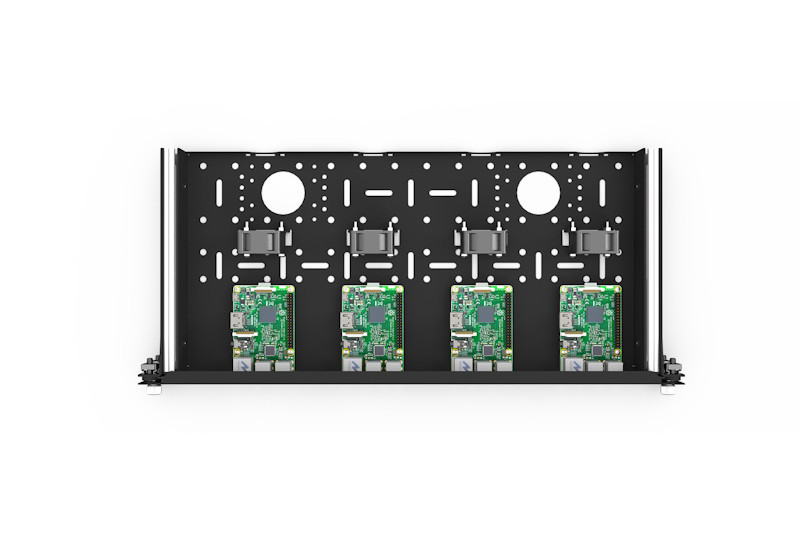

• Capacity: Holds up to four devices in a 1.00U high rackmount enclosure
• Mounting: Each device is secured with four M2.5 screws (included in the package)
• Extra space: Approx. 35 mm vertical clearance for accessories such as PoE-HATs, UPS modules
• Cable management: Includes cable ties for clean cable organization

Technical Specifications

• Rack size: 19″, 1.00U
• Dimensions (W x H x D): 482.6 × 43.4 × 210 mm
• Material: Steel
• Color: Front panel: white aluminium (RAL 9006), frame panel: black (RAL 9005)
• Fan compatibility: 4x 40×40 mm fans (mounting hole spacing 32×32 mm), mounted with two screws per fan
• Telescopic rails (optional): 200 mm extension rails for easy maintenance

Package Includes

• 1x UM-SBC-204 Rackmount Kit
• 4x Rack mounting screw sets
• 10x Cable tie 100 mm
• 5x Cable tie 300 mm
• 20x M2.5 mm screws for device mounting
• 1x Product data sheet
• 1x Assembly instructions

Note!

• Computers (e.g. Raspberry Pi) are not included in the delivery
