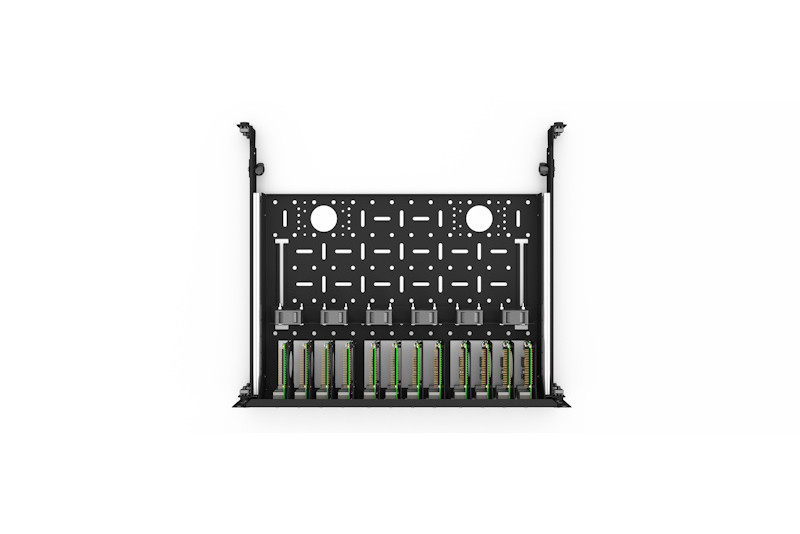

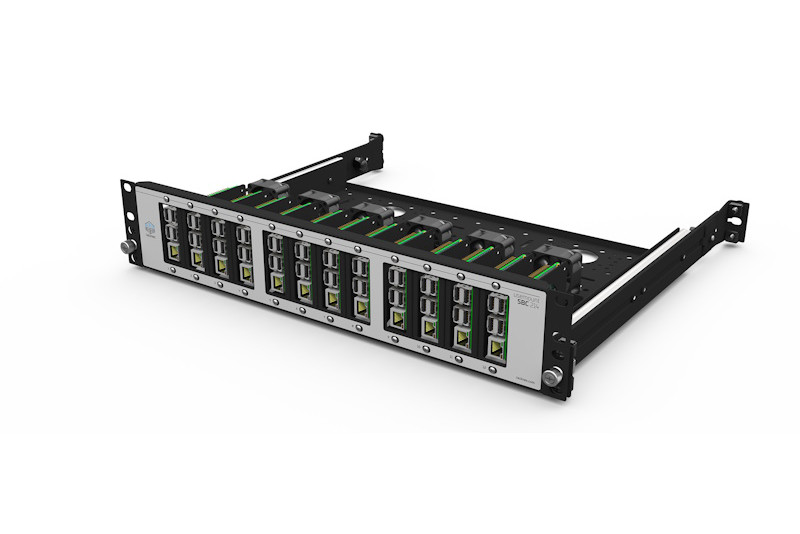

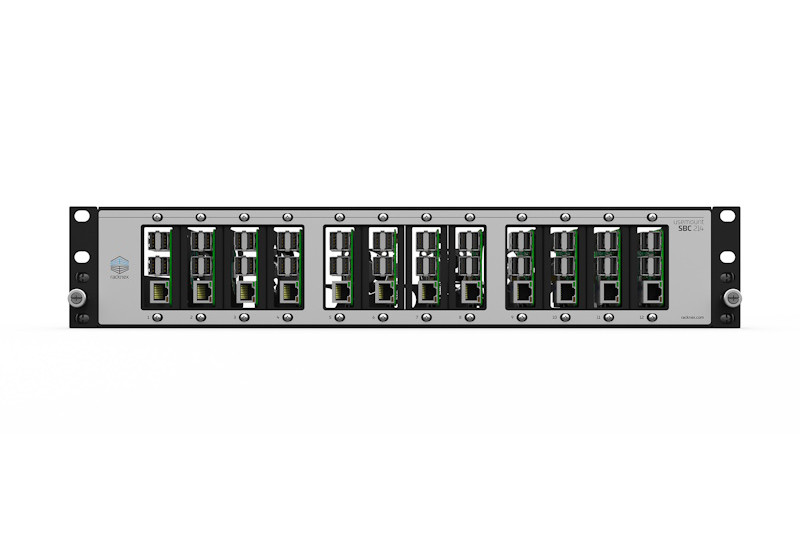

UM-SBC-214 Rackmount Kit is a robust and professional solution for mounting up to eight Raspberry Pi or similar single-board computers (SBCs) in a 19″ server rack. With a height of 2.00U, it provides generous space for additional components such as PoE-HATs, UPS modules, and cooling solutions – ideal for high-density server and test environments.
Features
- Compatibility: Raspberry Pi 2B, 3B, 3B+, 4B, 5 and other SBCs with Raspberry Pi form factor
- Capacity: Holds up to eight devices in a 2.00U rackmount enclosure
- Mounting: Each device is secured with four M2.5 screws (included in the package)
- Extra Space: Increased height allows for extensive add-ons such as PoE-HATs, UPS, and active cooling
- Cable Management: Includes cable ties for neat and organized wiring
Technical Specifications
- Rack Size: 19″, 2.00U
- Dimensions (W x H x D): 482.6 × 87.8 × 310 mm
- Material: Steel
- Color: Front panel: white aluminium (RAL 9006), enclosure: black (RAL 9005)
- Fan Compatibility: 4x 40×40 mm fans (mounting hole spacing 32×32 mm), mounted with two screws per fan
- Telescopic Rails (optional): 200 mm pull-out rails for easy maintenance
Package Includes
- 1x UM-SBC-214 Rackmount Kit
- 4x Rack mounting screw sets
- 10x Cable tie 100 mm
- 5x Cable tie 300 mm
- 80x M2.5 mm screws for device mounting
- 1x Product data sheet
- 1x Assembly instructions
Note!
- Computers (e.g. Raspberry Pi) are not included
