Teltonika SWM282 Ethernet rack mount switch 24xGbE (24xPoE)

Description

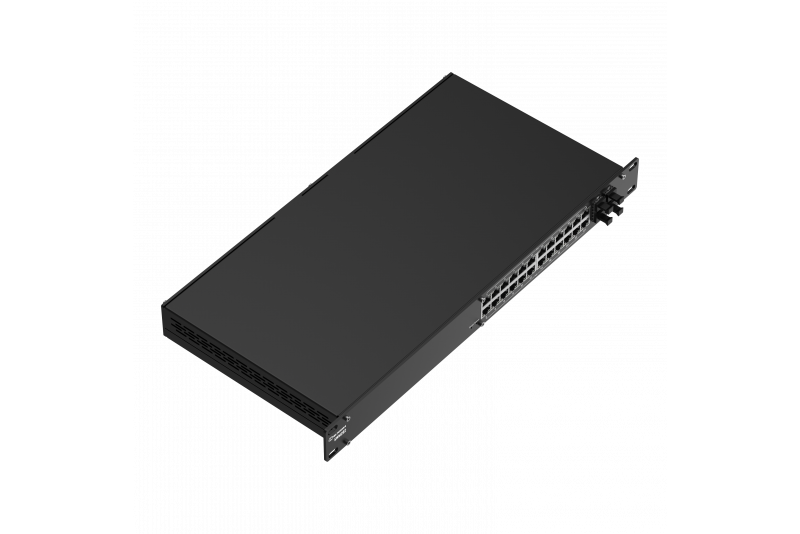

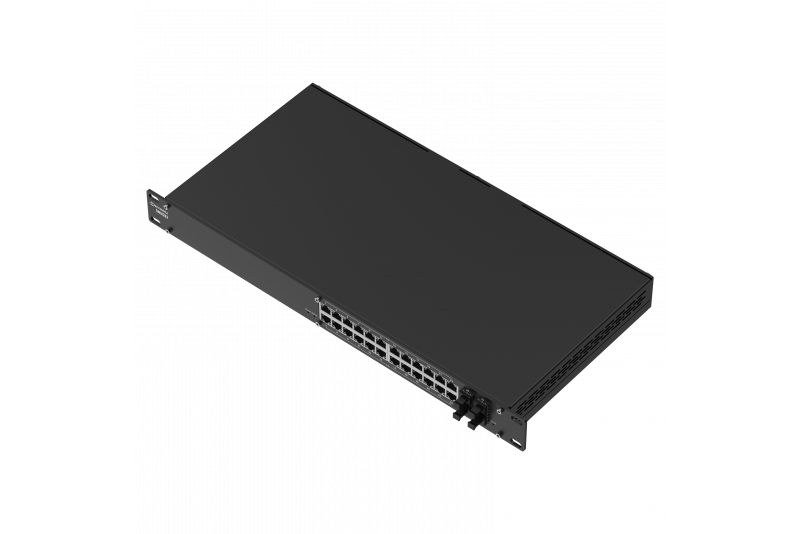

The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.

Key features

• PoE+
  Deliver power and data through 24 PoE+ ports with up to 30W per port
• L2+
  Advanced routing protocols & VLAN segmentation
• Cloud-Enabled
  Shipped with 2 years of RMS Management
• Protocols
  Profinet, MRP, and EtherNet/IP for mixed industrial environments

Hardware

• RAM: 128 MB, DDR3
• Flash storage: 16 MB serial flash

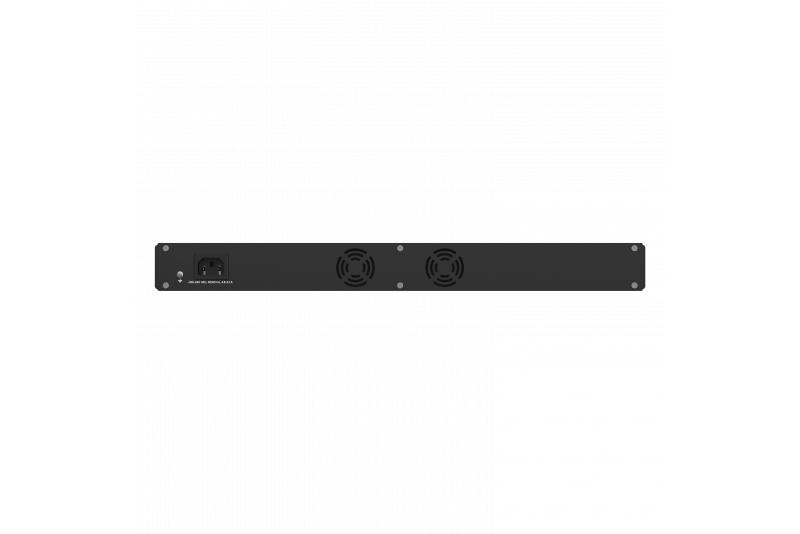

• Powering options: C14 connector
• Input voltage range: 100–240 VAC, 50/60 Hz

Performance Specifications

• Bandwidth (Non-blocking): 56 Gbps
• Packet buffer: 512 KB
• MAC address table size: 8K entries
• Jumbo frame support: 10,000 bytes
• Input voltage range for PoE: 44–57 VDC
• Power consumption: Idle 9 W / Max 330 W / PoE Max 300 W

Ports

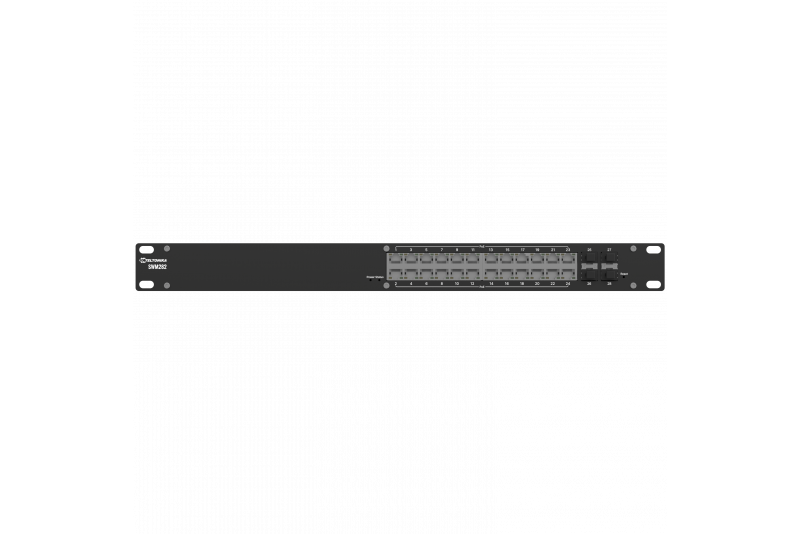

• Ethernet: 24 × RJ45 ports (10/100/1000 Mbps)
• SFP: 4 × SFP ports

Physical & Environmental

• Ingress protection: IP30
• Operating temperature: 0 °C to 50 °C
• Dimensions (W × H × D): 483 × 44 × 234 mm
• Weight: 1770 g
• Mounting options: Rack mounting

Standard Package

• SWM282 L2+ managed switch
• QSG (Quick Start Guide)
• Packaging box
