POE SPLITTER 5V 2A MICROUSB

SBC-POE-POWER

5 Items

In stock

Manufacturer homepage

17,77 €

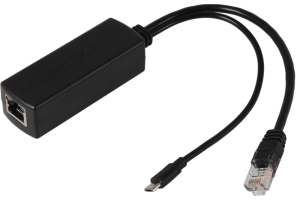

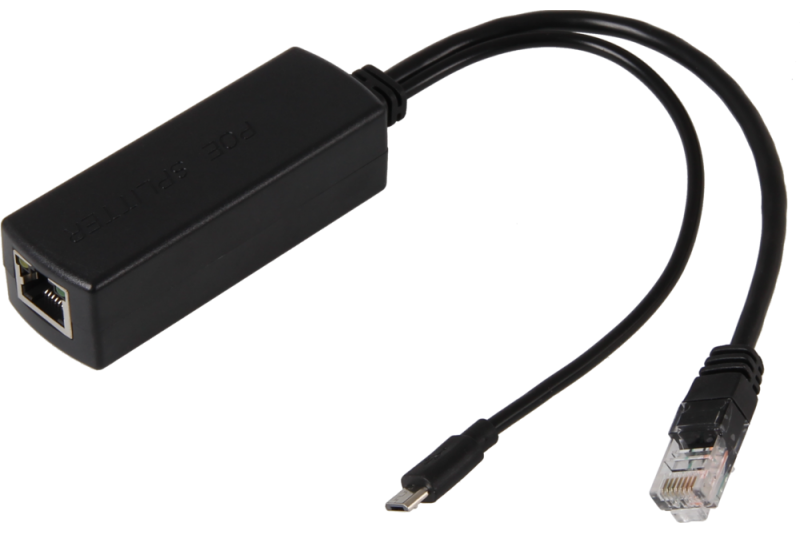

Joy IT SBC-PoE-Power - Power over Ethernet

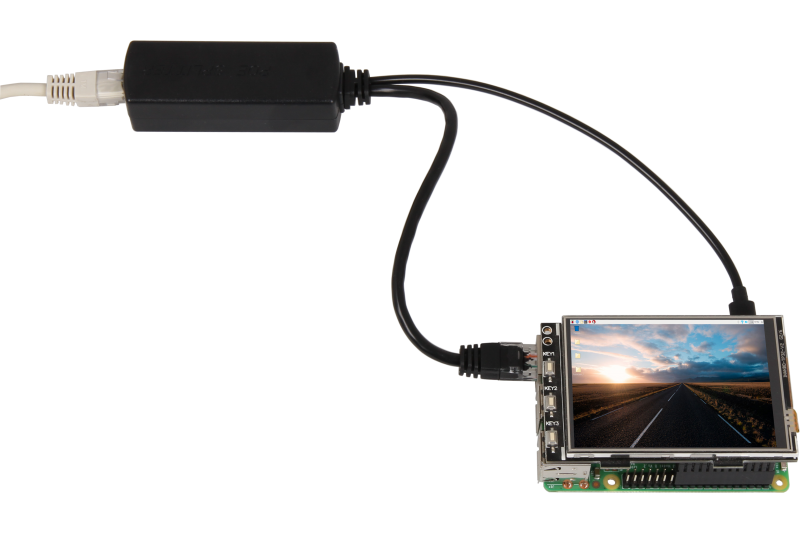

With this adapter is it possible to supply power via PoE-LAN to the Raspberry Pi (all models) and other singleboard-computer which are normally supplied via microUSB. Therefore, the device is connected via PoE-LAN cable (up to 100m cable length) with a PoE capable router / switch or a PoE injector.

Specifications

  • Model: Power over Ethernet—mUSB Poweradapter
  • Ports: 1x Micro USB power plug, 1x Rj45 output port
  • Input Voltage: 36 - 57V (standard PoE voltage 48V, 52V)
  • Output Voltage: DC 5 V
  • Output Current: 2 A
  • Transmission Distance: 10 - 100 m
  • PoE Protocol: IEEE802.3af
  • Network Bandwidth: 10/100 Mbps
  • Cable Length: 205 mm
  • Operating Temperature: -50 - 75 °C
  • Dimensions: 82 x 28 x 23 mm
  • Weight: 40 g
  • Items Shipped: Power over Ethernet—mUSB Poweradapter
EAN4250236817019
click for more info
ManufacturerJoy-IT
Manufacturer's modelSBC-PoE-Power
Measures82 x 28 x 23 mm
