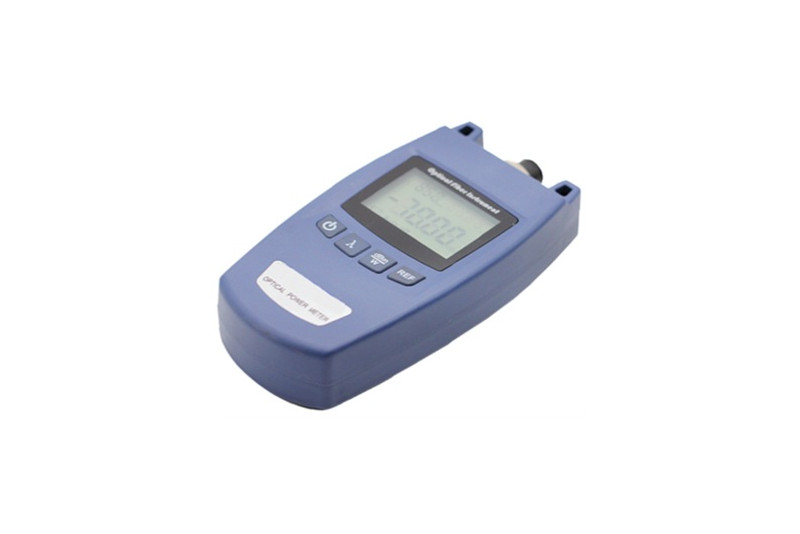

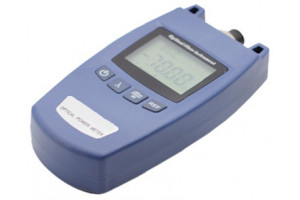

TC36E Mini optical power meter

The TC-36E Optical Power Meter is a test instrument widely used for the installation, operation, and maintenance of fiber-optic networks. The TC-36E can measure optical power within the wavelength range of 800~1700 nm. It features six calibrated wavelengths: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, and 1625 nm.

Specifications

• Measurement Range (dBm): -70 ~ +10
• Wavelength Range (nm): 800 ~ 1650
• Calibrated Wavelengths (nm): 850, 1300, 1310, 1490, 1550, 1625
• Detector: InGaAs
• Accuracy: < ±3% (-10 dBm, 22 °C)
• Resolution: Linearity 0.1%; Non-linearity 0.01 dBm
• Working Temperature (°C): -10 ~ +50
• Storage Temperature (°C): -20 ~ +70
• Relative Humidity: 90% (@ +30 °C)
• Connector Types: FC, SC/FC, FC/SC/ST
• Power Supply: 3 x AAA batteries
• Working Hours: >120 h (without backlight)
• Weight: 160 g
• Dimensions (mm): 130 × 63 × 29

Accessories

• 1 x Optical Power Meter
• 1 x FC connector
• 1 x FC/SC connector
• 1 x FC/SC/ST connector
• 1 x User Manual
• 3 x AAA batteries
• 1 x Carrying Box
