12,70 €

  • Temperature range: -50 … +110 °C
  • Resolution: 0.1 °C (-9.9 … 99.9 °C), 1 °C (other ranges).
  • Measurement accuracy: 0.1 °C
  • Update rate: 0.5 s
  • Operating voltage: 12 V DC
  • Power consumption: 35 mA
  • Power consumption when the relay is activated: 65 mA.
  • Measurement sensor: NTC (10K 0.5%) water-resistant.
  • Output: 1-channel relay / 10 A
  • Operating temperature: -10 … +60 °C / Humidity: 20 … 85%
  • Cable length (measurement sensor): approx. 50 cm
  • 4 mounting holes (M3.0)
  • PCB dimensions: 50 x 40 x 16 mm

Instructions for Use:

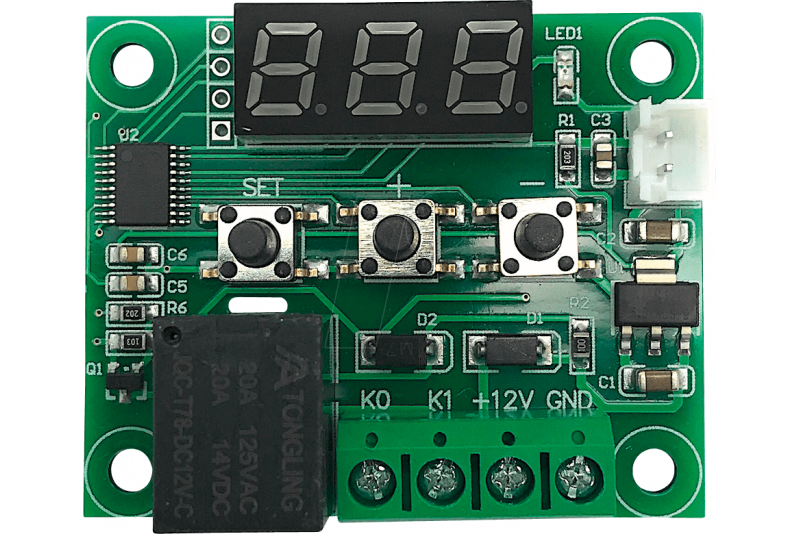

  1. Connect the power supply, measurement sensor, and desired load to the circuit board (screw terminals K0 and K1).
  2. Briefly press the SET button, and the LED display will flash. Use the + and - buttons to set the desired temperature. Press the SET button again to confirm the temperature.
  3. If the SET button is held for more than 3 seconds, various options can be selected. Typically, option P0 is used to switch between C and H modes. C means the relay is activated when the desired temperature is exceeded, and H means it’s deactivated.
  4. The module continuously measures the temperature using the sensor. When the desired temperature is reached, the relay switches on and creates continuity between screw terminals K0 and K1. Additionally, the LED (LED1) remains lit.

Note: This module is not for professional use and should not be considered a functional device. It is suitable for prototyping purposes.
