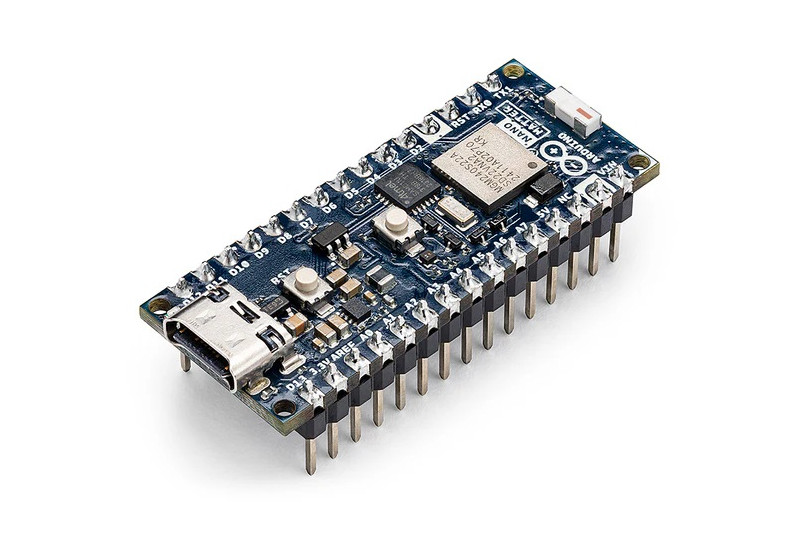

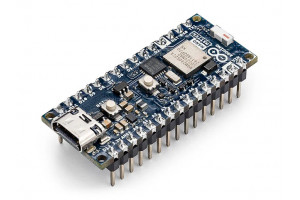

Arduino Nano Matter with headers (ABX00137)

Arduino Nano Matter – the key to the world of smart homes

Arduino Nano Matter is a powerful and compact development platform designed specifically for IoT and smart home technology applications.
Thanks to full Matter protocol support—an open standard for seamless device interoperability—this microcontroller makes it easy to integrate your projects into a connected ecosystem.

Key features
- Matter compatibility – Supports the latest protocols for secure, platform-independent communication between smart home devices.
- Compact size – Perfect for projects where space is limited, without compromising performance.
- Powerful processor – Based on modern microcontroller technology, enabling fast processing and high efficiency.
- Energy efficiency – Designed to save power in both battery-powered and mains-powered applications.
- Easy development – Compatible with the Arduino IDE and many software tools, enabling fast and efficient development.

Applications

• Smart home: e.g. control of lighting or blinds and indoor climate monitoring
• Building automation: energy and space usage management and control of ventilation systems
• Industrial automation: machine monitoring, sensor integration, and optimization of safety standards

Technical specifications

• Microcontroller: Silicon Labs MGM240SD22VNA, 32-bit ARM Cortex-M33 core, 78 MHz clock speed
• Memory: 1536 kB flash, 256 kB RAM
• Connectivity: Supports Thread (802.15.4), Bluetooth Low Energy (BLE) 5.3, Bluetooth Mesh, and the Matter protocol
• Security: Integrated Secure Vault® technology providing robust security solutions for IoT applications
• Analog peripherals: 20 ADC channels with 12-bit resolution and up to 4 DAC channels with 12-bit resolution
• Digital peripherals: 22 GPIO pins with PWM support for five simultaneous channels, 2 UART, 2 SPI, and 2 I²C
• Power supply: USB-C or external input (IN5V, VIN)
• Dimensions: 18 mm x 45 mm, weight 4 g
• User interface: Built-in RGB LED and button
• Connectors: Nano-type headers and solder pads for SMD applications
• Operating temperature: -40 °C to +85 °C

Package contents

• 1× Arduino® Nano Matter development board with pre-soldered pin headers
• Quick start guide
