ARDUINO MODULINO MOVEMENT

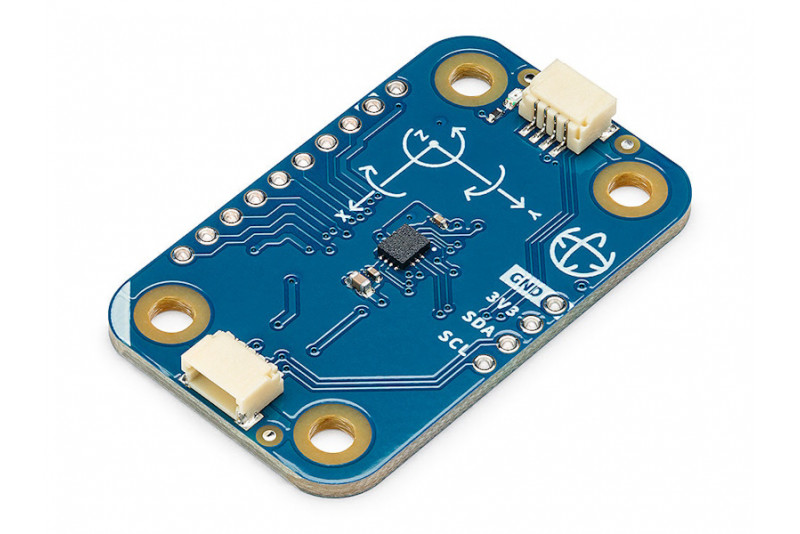

Modulino® Movement module brings precise motion sensing to your projects – it measures acceleration and rotational movement (tilt, roll, pitch) using the LSM6DSOXTR IMU sensor!

The Arduino Modulino® collection offers plug-and-play smart components that make electronics easy to use and interactive – with minimal coding and maximum creativity.

Connect the Modulino® Movement with a Qwiic cable to other Modulino nodes and Arduino boards – creating a seamless network that leverages daisy-chaining technology just like other Modulino modules.

Both beginners and experienced developers can utilize Arduino Cloud models and the Modulino library (supporting Arduino and MicroPython) to quickly implement motion-based features such as gesture recognition, orientation measurement, or vibration monitoring.

The module’s uniform design allows easy swapping and reuse in projects. Advanced users can utilize the pin header interface for additional signals such as SPI or interrupts.

Compatible with all Qwiic-compatible Arduino boards including Nano, UNO R4 WiFi, Nano 33 BLE, Nano ESP32, Nano RP2040 Connect, and Nano Matter.

Key Benefits

• Plug-and-play connectivity: Connect directly to Nano or UNO R4 WiFi boards using the Nano Connector Carrier.
• 6-axis precision: The LSM6DSOXTR sensor measures 3D acceleration and gyroscope data (roll, pitch, yaw).
• Versatile applications: Suitable for gesture recognition, pedometers, vibration monitoring, robotics, and motion control.
• Easy expandability: Add functions without redesigning hardware.
• Arduino ecosystem integration: Support for Arduino IDE, Arduino Cloud, and the Modulino library.

Technical Specifications:

• Board name: Modulino® Movement
• Product code (SKU): ABX00101
• IMU sensor: LSM6DSOXTR – 3-axis accelerometer + 3-axis gyroscope

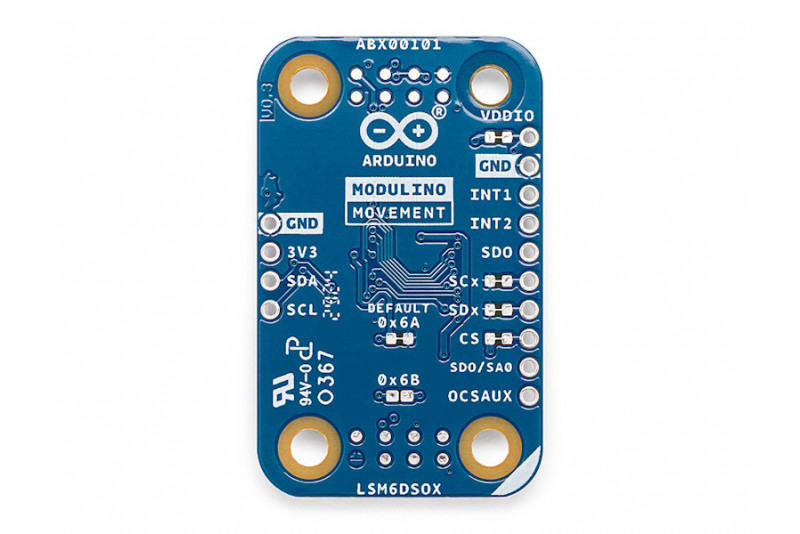

• I²C address: 0x6A (changeable to 0x6B via solder jumper)

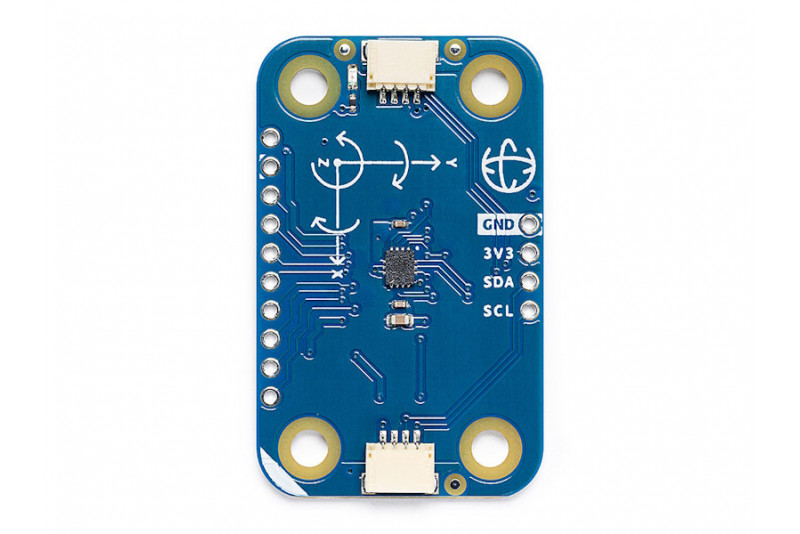

• Connector: Qwiic (3.3 V), pin header also available
• Operating voltage: 3.3 V
• Dimensions: 25.36 × 41 mm
• Weight: 3.9 g
• Accelerometer current: ~170 µA; Gyroscope current: ~0.55 mA
• Operating temperature: –40…+85 °C

Package Includes:

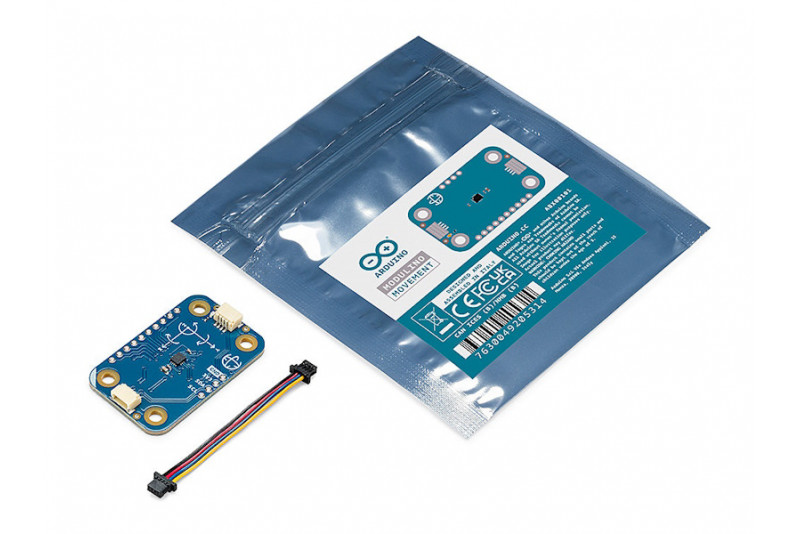

• 1 × Modulino® Movement module
• 1 × Qwiic cable (5 cm)

Link:

Datasheet (PDF)
