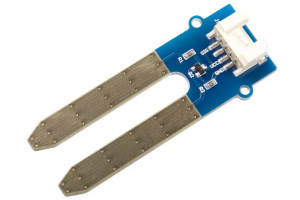

Grove Soil Moisture Sensor

SEEED 101020008

1 Item

In stock

Warning: Last items in stock!

Manufacturer homepage

6,08 €

Seeed Studio 101020008 - Grove - Soil Moisture Sensor can measure soil moisture for plants. The soil moisture sensor consists of two probes that allow the current to pass through the soil and then obtain resistance values to measure soil moisture content.

PRODUCT DETAILS

Features

  • Soil moisture sensor based on soil resistivity measurement
  • Consists of two probes that allow the current to pass through the soil
  • Easy to use and cost-effective
  • Grove compatible interface( u-blox version)

Description

Grove - Soil Moisture Sensor can measure soil moisture for plants. The soil moisture sensor consists of two probes that allow the current to pass through the soil and then obtain resistance values to measure soil moisture content. It can be used to decide if the plants in a garden need watering. You can also use soil moisture sensors in gardens to automate watering plants. It can be used very easily by just inserting the sensor into the soil and reading the output using ADC.

NOTE

This sensor is not hardened against contamination or exposure of the control circuitry to water and may be prone to electrolytic corrosion across the probes, please use it for PROTOTYPING ONLY. We also offer Grove - Capacitive Moisture Sensor with corrosion resistance.

Applications

  • Botanical Gardening

  • Moisture Sensoring

  • Consistency Measurement

Technical details

Dimensions60mm x20mm x6.35mm
WeightG.W 10g
BatteryExclude
Operating voltage3.3~5V
Operating current35mA
Sensor Output Value in dry soil0~ 300
Sensor Output Value in humid soil300~700
Sensor Output Value in water700 ~ 950
PCB size2.0cm X 6.0cm

Part List

Grove - Moisture Sensor1
Grove Cable1

Links

Video

click for more info
ManufacturerSeeed Studio
Manufacturer's model101020008
Measures60 x 20 x 6,35 mm
Weight10g
