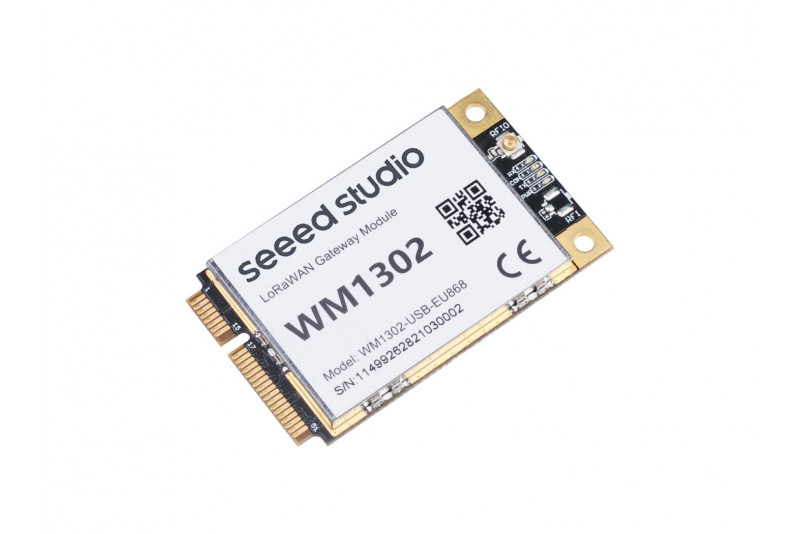

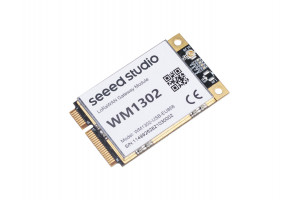

WM1302 module is a new generation of Long Range gateway module in mini-PCIe form-factor based on Semtech® SX1302. It features extremely low power consumption, outstanding performance with CE, FCC, Telec certified.
Features:

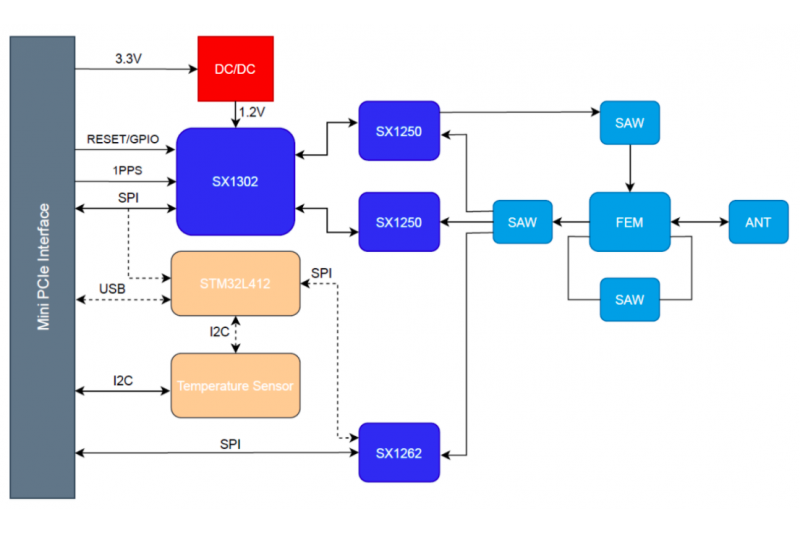

- Powered by Semtech® SX1302 baseband LoRa® chip, extremely low power consumption and high performance.

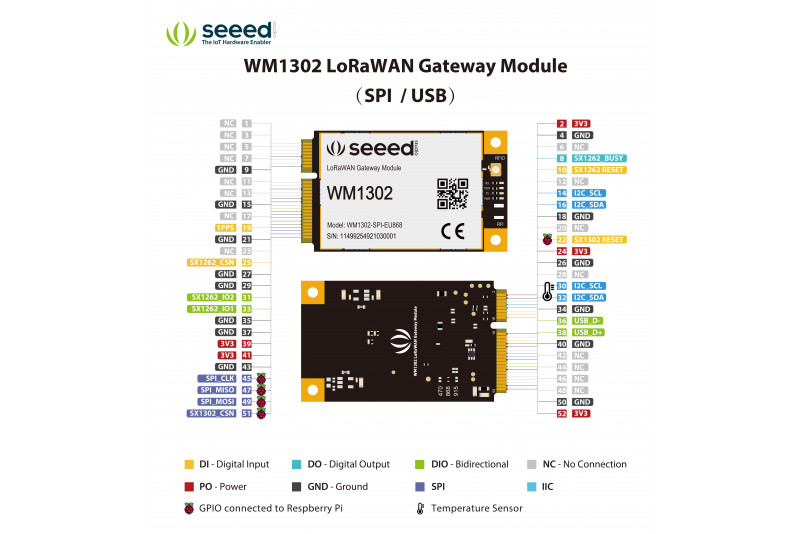

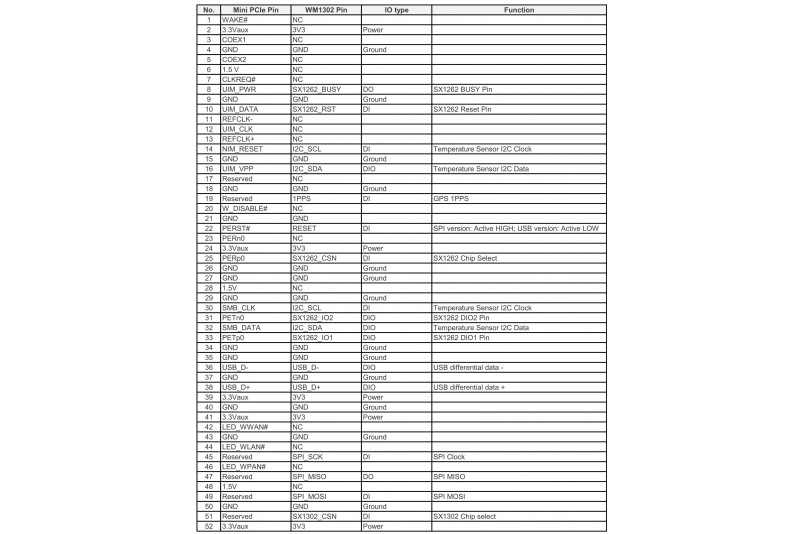

- Mini-PCIe form factor with the standard 52-pin golden finger, easy to integrate with various gateway devices.
- Ultra-low operating temperature, no additional heat dissipation needed, reducing the size of LoRaWAN gateway.
- High sensitivity down to -139 dBm @SF12 with SX1250 TX/RX front-end; TX power up to 26 dBm @3.3V.
- Certified with CE(EU868), FCC ID(US915), and TELEC(AS923).Simplify the final product certificat
Specifications:
| Region | EU868 | |
|---|---|---|
| Frequency | 863-870MHz | |
| Sensitivity | -125dBm @125K/SF7 -139dBm @125K/SF12 | |
| TX Power | 26 dBm (with 3.3V power supply) | |
| LEDs | Power: Green Config: Red TX: Green RX: Blue | |
| Form Factor | Mini PCIe, 52pin Golden Finger | |
| Power Consumption (SPI version) | Standby: 7.5 mA TX maximum power: 415 mA RX: 40 mA | |
| Power Consumption (USB version) | Standby: 20 mA TX maximum power: 425 mA RX: 53 mA | |
| LBT(Listen Before Talk) | Support | |
| Antenna Connector | U.FL | |
| Operating Temperature | -40°C to 85°C | |
| Dimensions | 30 mm (width) × 50.95 mm (length) | |
| Certification | CE | |
