Plastic enclosures

Manufacturers

BLACK PLASTIC BOX FOR 75x100mm PCB View larger

BLACK PLASTIC BOX FOR 75x100mm PCB

KOT 45X95X135 MUS

Currently unavailable

5,00 €

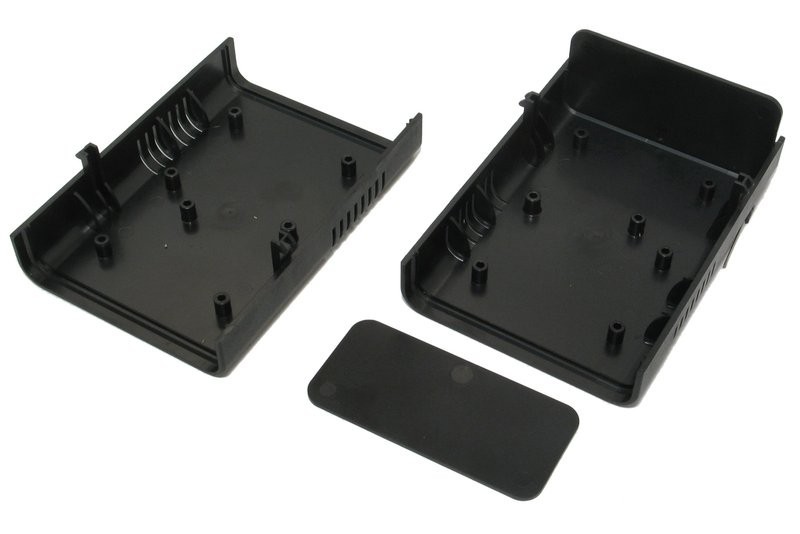

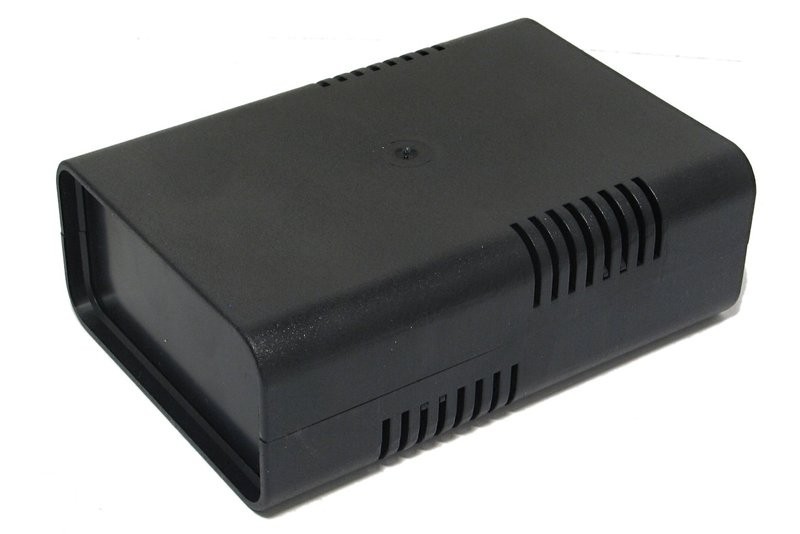

  • material black polystyrene plastic
  • the cover parts are snapped together
  • symmetrical construction, i.e. the lid and base are identical
  • pre-fitted cooling openings
  • removable end plates
  • inside seven base pins with screw fixing to which an M3 thread can be added if necessary
  • the maximum size of the circuit board attached to the base pins is approximately 75 x 118 mm
  • space on top of the bottom PCB for components up to a maximum height of approx. 30 mm
ManufacturerDonau
Manufacturer's modelKGB11
Colourblack

datasheet KOT 45X95X135 MUS

Download (48.87k)
