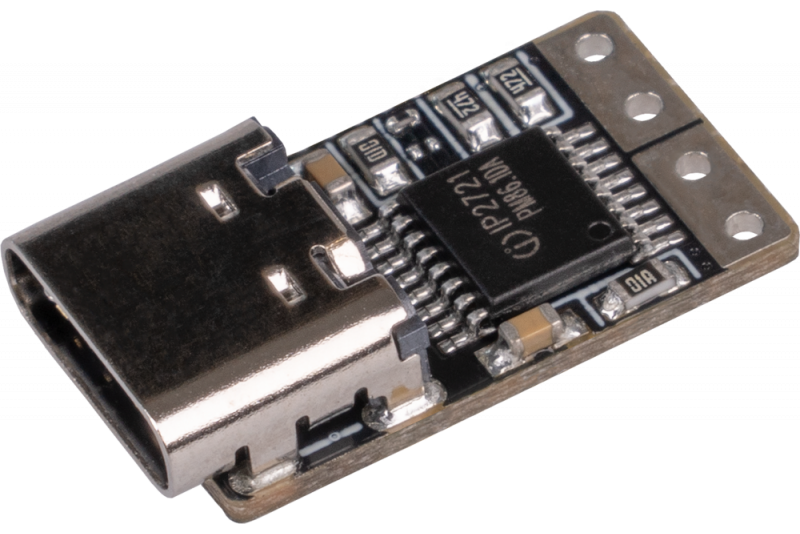

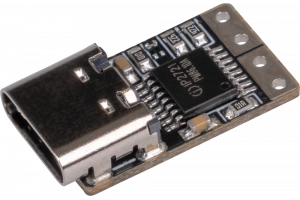

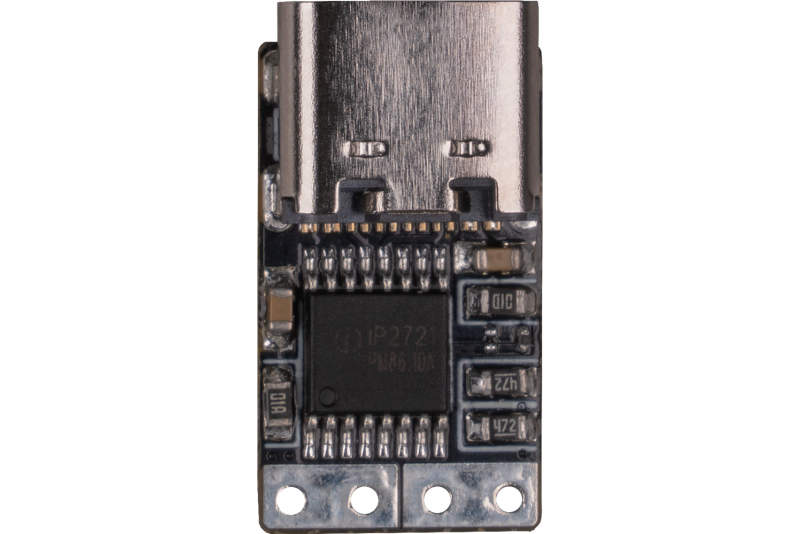

Joy-IT USB-C PD TRIGGERI MODULI

With this small module, you can trigger USB-PD protocols and thus, for example, charge your laptop via a PD-capable USB-C power supply.

The output voltage can be adjusted in three steps (5 V, 15 V and 20 V) by setting a resistor. The module is highly integrable due to its small form factor and flexible output interface.

Specification

• OUTPUT VOLTAGE: 5 V / 15 V / 20 V (adjustable via resistors 0201 Imp.)
• SUPPLY VOLTAGE: (up to 20 V / 100 W) USB-PD-capable power supply (not included)
• OUTPUT CURRENT: 5 A at 20 V, 3 A at <20 V
• OUTPUT POWER: 100 W max.
• INPUT INTERFACE: USB-C
• OUTPUT INTERFACE: Solder pads
• SPECIAL FEATURES: Adjustable output voltage
• DIMENSIONS: 19 x 10 x 5 mm
• ITEMS SHIPPED: COM-ZYPDS Modul

Links

• COM-ZYPDS Datasheet (English)
• COM-ZYPDS Manual (English)
