Raspberry Pi 5 PCIE NVME SSD BASE BOARD

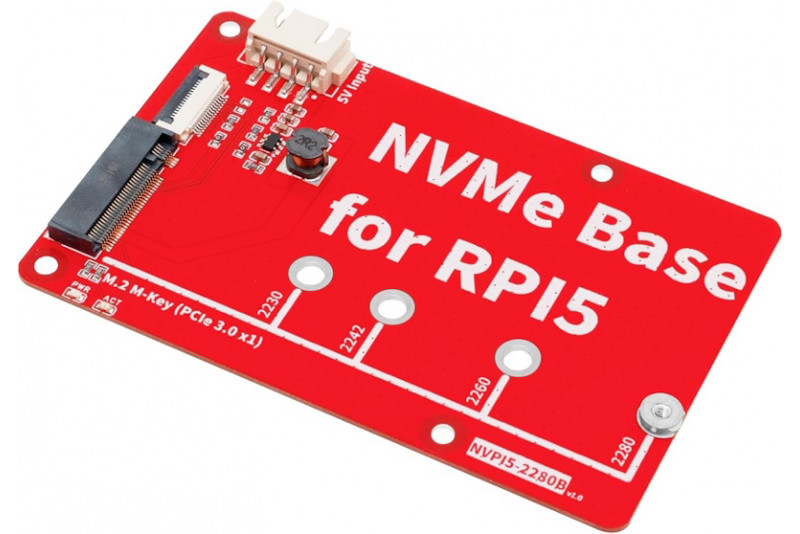

The Elecrow NVPI5-2280B is a PCIe NVMe SSD expansion base designed for the Raspberry Pi 5, enabling the use of high-speed M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors. By connecting directly to the Raspberry Pi’s PCIe Gen 3 x1 interface, this board supports system boot from the NVMe SSD, providing a major performance upgrade over traditional microSD storage. It's an excellent solution for performance-intensive projects such as file servers, virtualization, or AI applications.

The expansion base is fully compatible with the Raspberry Pi 5 HAT ecosystem and supports the installation of official active coolers. It also includes an external +5V power input connector for additional power stability, especially when using higher-capacity SSDs. Dual LED indicators (power and activity) provide real-time device status at a glance.

Features

• Compatible with other Raspberry Pi HAT shields
• Supports system boot directly from an NVMe SSD
• 60mm length Flat Flex Cable connection
• Supports installation of official Raspberry Pi active coolers
• Dual LED indicators: “PWR” (Power) and “ACT” (Activity)
• Supports 2230 / 2242 / 2260 / 2280 NVMe M.2 SSDs
• M.2 standard-compliant power system
• External +5V power input connector for enhanced power delivery
• Base-mounted design for easy installation and stability

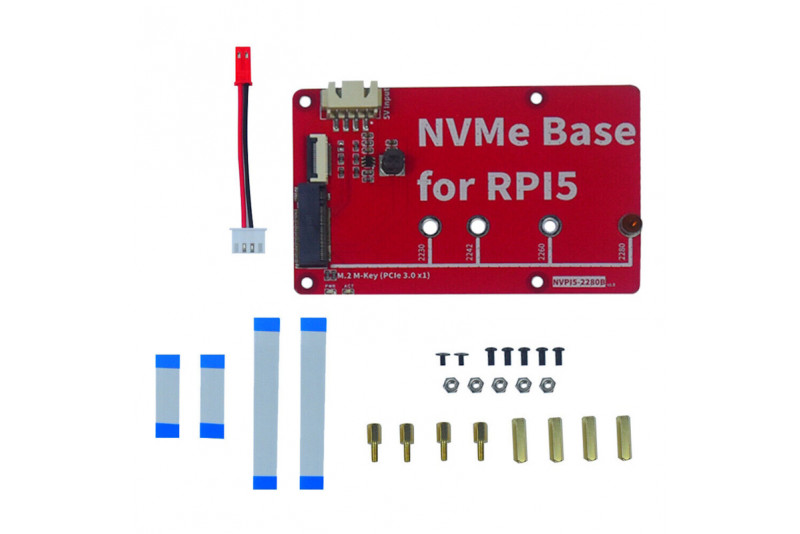

Package Contents

• 1x NVPI5-2280B Expansion Board
• 2x PCIe FFC Ribbon Cables (30mm)
• 2x PCIe FFC Ribbon Cables (60mm)
• 4x M2.5x14mm F/F Spacers
• 4x M2.5x6+6mm F/M Spacers
• 5x M2.5x5mm Screws
• 2x M2x4mm Screws
• 1x XH2.54 4P Power Cable

Link

• Product Page on Manufacturer's Website

Note: Raspberry Pi 5 and NVMe SSD are not included.
